Horizontal packing machine ， down paper type suitable for same loose product, soft , strip and unorganized objects like towels , hard ware ,tissues , noodles , egg rolls , sausages , fish , ice-lollipop , soft candies , biscuits , fresh fruits , etc.

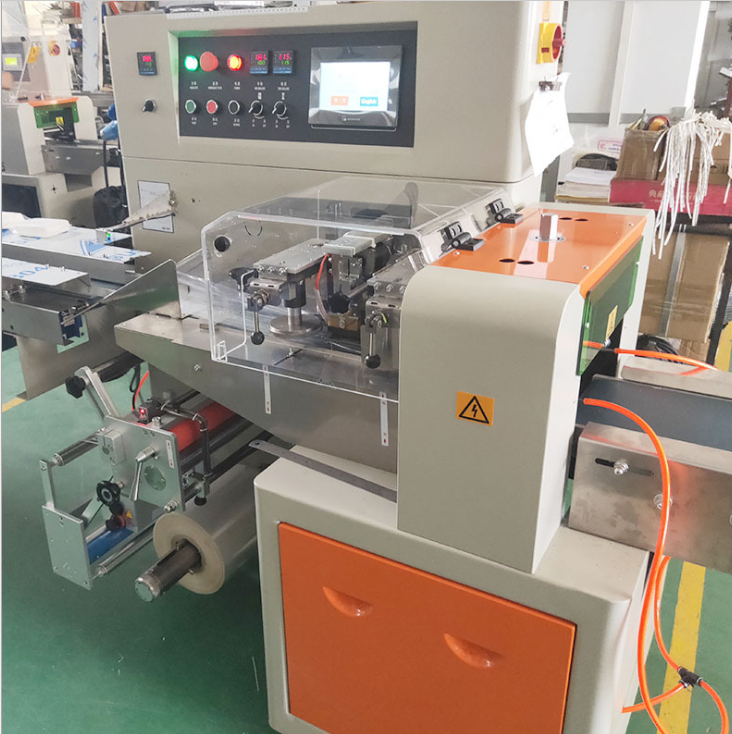

Flow Packing Machine Down Film type
I.
Main performance and structure features
1. Double transducer control, flexible bag length cutting, operator needn't to
adjust the unloading working, saving time and saving films.
2.human-machine operation, convenient and quick parameter setting.
3.Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking ，digital input cut position which makes the sealing and cutting
more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no
waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. .All the controls are achieved by software, convenient for function
adjusting and upgrading.
II.
Flow Packing Machine Down paper type Application
Suitable for packaging soft , strip and unorganized objects like towels ,
tissues , noodles , egg rolls , sausages , fish , ice-lollipop , soft candies ,
biscuits , fresh fruits , etc.
|
Flow Packing Machine Down paper typeitem |
KL-250X |
KL-350X |
KL-450X |
KL-600X |
|
film width |
Max.250mm |
Max.350mm |
Max.450mm |
Max.600mm |
|
bag length |
65-190mm or 120-330mm |
65-190mm 120-330mm |
120-450mm |
200-600mm |
|
bag width |
30-110mm |
50-160mm |
50-210mm |
180-280mm |
|
product height |
Max.60mm |
Max.60mm |
Max.60mm |
Max.60mm |
|
packaging speed |
40-230bags/min |
40-230bags/min |
40-230bags/min |
40-230bags/min |
|
power |
220v 50/60hz 2.4kw |
220v 50/60hz 2.8kw |
220v 50/60hz 2.8kw |
220v 50/60hz 2.8kw |
|
machine size |
3920*670*1320MM |
4020*720*1320MM |
4020*820*1320 |
4020*820*1320 |
|
machine weight |
500KG |
550KG |
600KG |
700KG |
down Film packaging sample:
