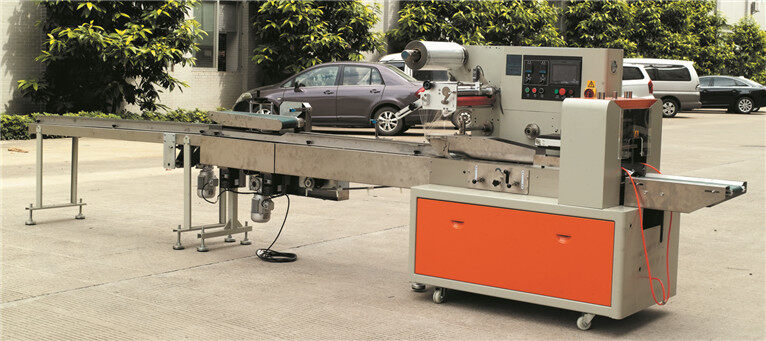

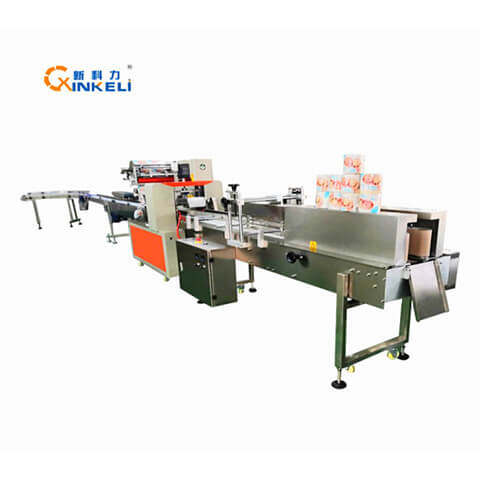

KL-500TS Single Roll Toilet Paper Packing Machine

Auto Single Toilet Roll Paper packing machine With feeding machine production line,can connect with the paper converting cutting machine, Without manpower! Mainly used for individual roll toilet paper packaging,this packaging machine is different with the other factory roll paper packaging


contact us

With feeding machine production line,can connect with the paper converting cutting machine, Without manpower!

Mainly used for individual roll  toilet paper packaging,this  packaging machine is different with the other factory roll paper packaging, the end sealing we have tail, just like the below pictures: but if you accept,this packaging also very nice, and now also welcome to use in all over the world, and machine is stable running, price is cheaper much .we already sell to india and south African  market many sets, see the packaging effect:

01. Full servo control system, all independent programming, all controlled by the software to facilitate the function of restructuring and technological upgrading, advanced

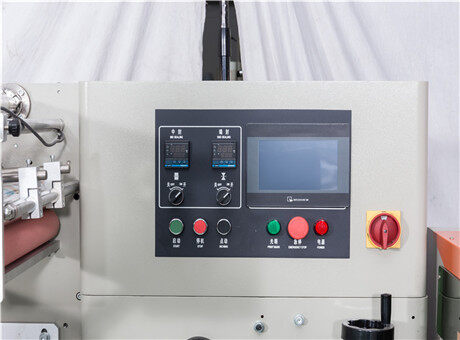

02 human-machine operation, convenient and quick parameter setting.

03. Fault self-diagnosis function, clear failure display.

04. Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

05. automatically recognizes the bag length according to tissue products, machine adjustment is simple.

06. Positioned stop function, without sticking knife, CPP and CPP-sided heat sealing film and color packaging films can be packaged, not wasting film.

07. Simple driving system, reliable working, convenient maintenance.

08. It can automatically connect with roll Cutter, without manual working,  saving labor costs.

09. No product machine will stop,will not have empty bag. never waste film

Scope of Application

paper roll/ tissue/ Toilet roll paper/Kitchen Towel Paper

In-feed Way

Full automatic

Production Speed

30~120 rolls/min.

Average Time for Specification Transformation

≤ 5min.

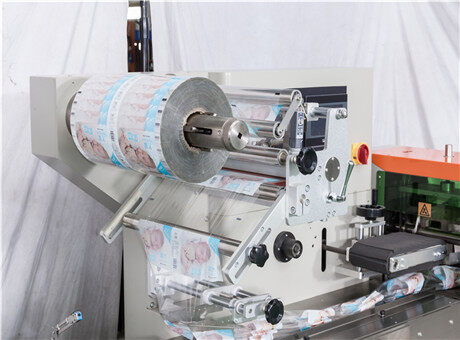

Change the Packing Film

≤ 1min.

Diameter of Toilet Paper Roll

Φ85 –120mm (customized)

Length of Toilet Paper Roll

L80 – L150mm (customized)

Paper Roll Diameter Tolerance

±5mm

Paper Roll Length Tolerance

±3mm

Printing Design Position Error Range

Packing machine direction±3mm

Film Materials

BOPP. SPP. CPP

Uptional Device:

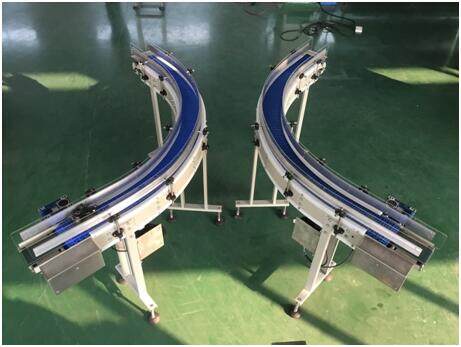

 90° turning machine:

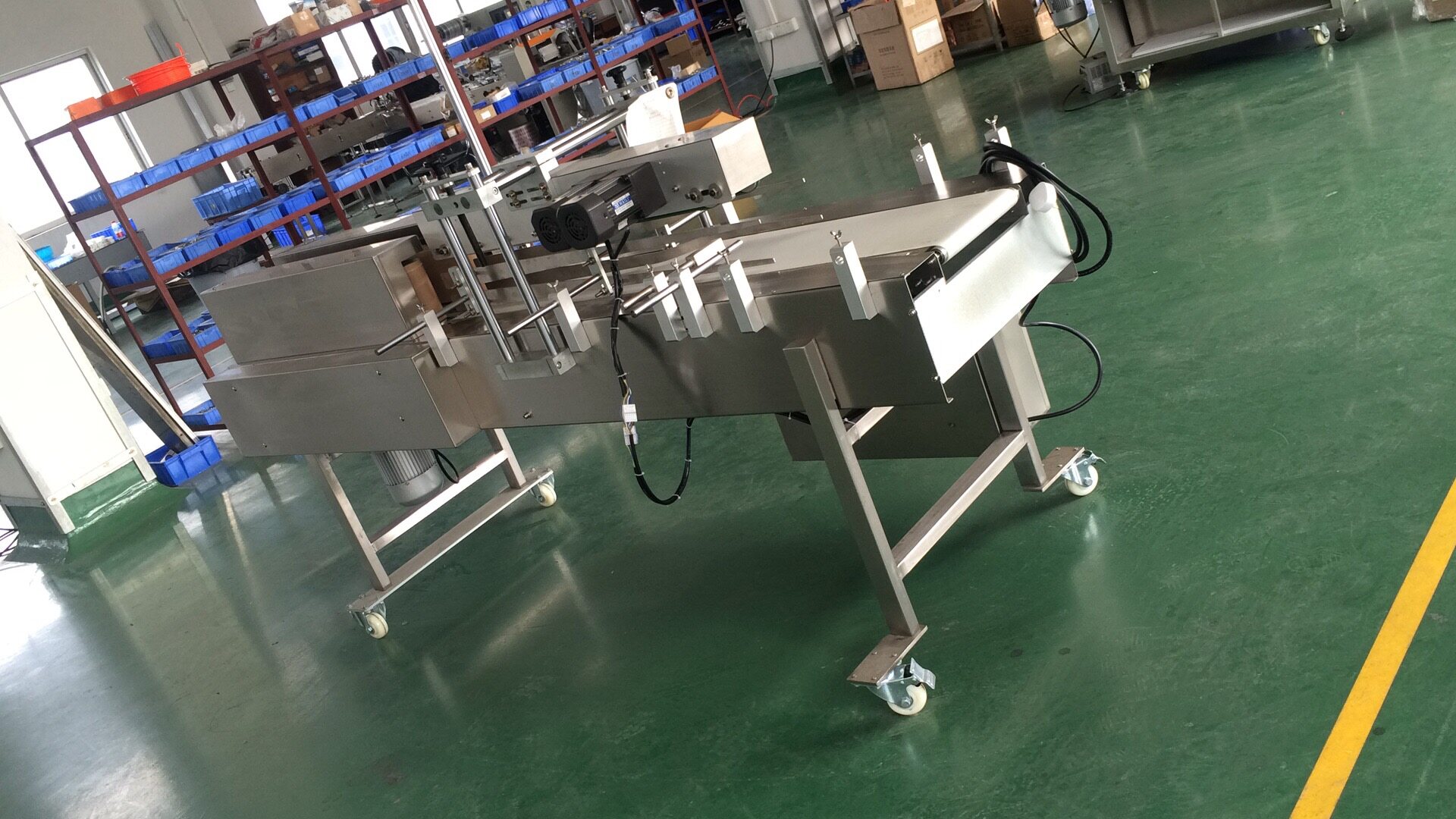

 Ironing Machine:
