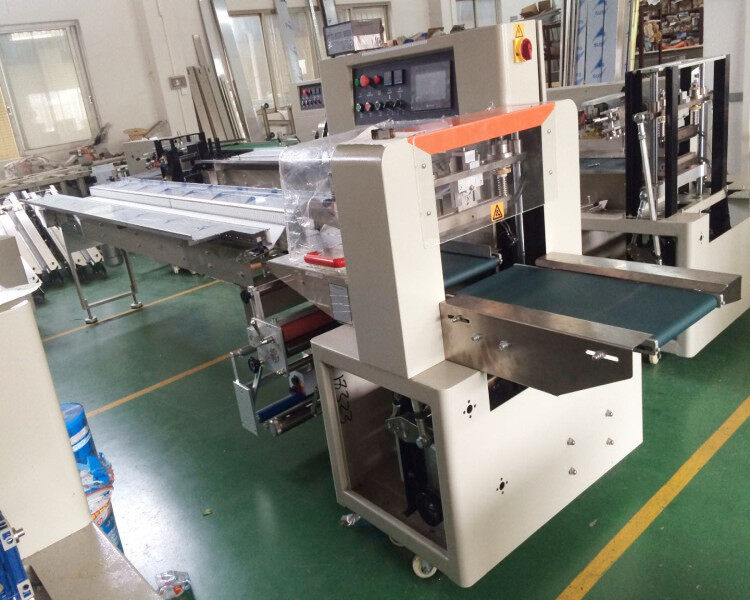

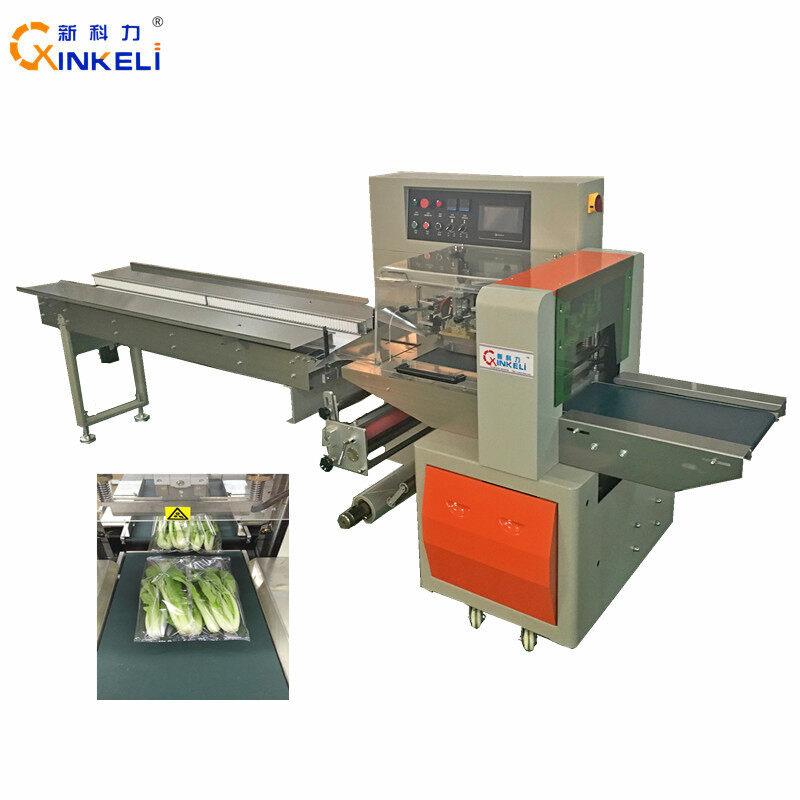

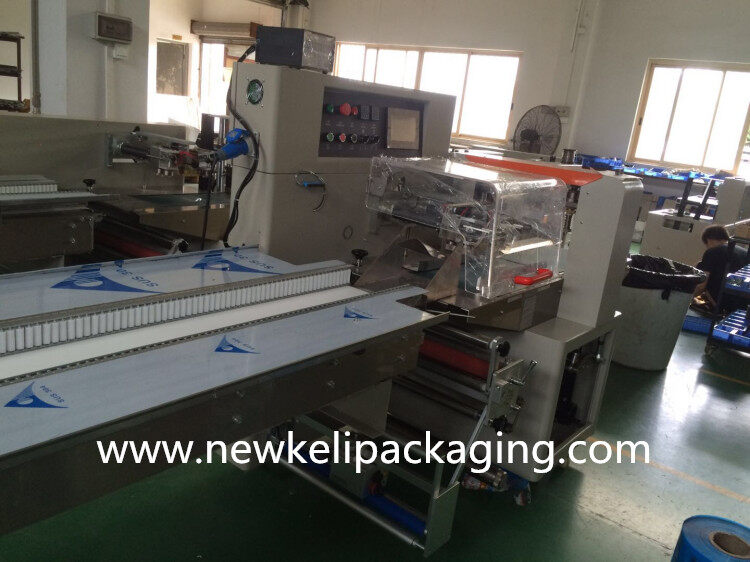

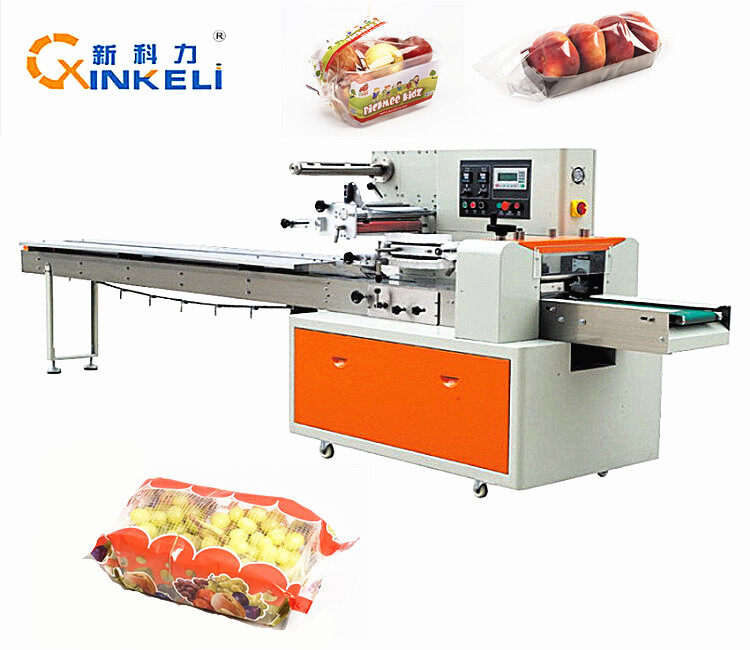

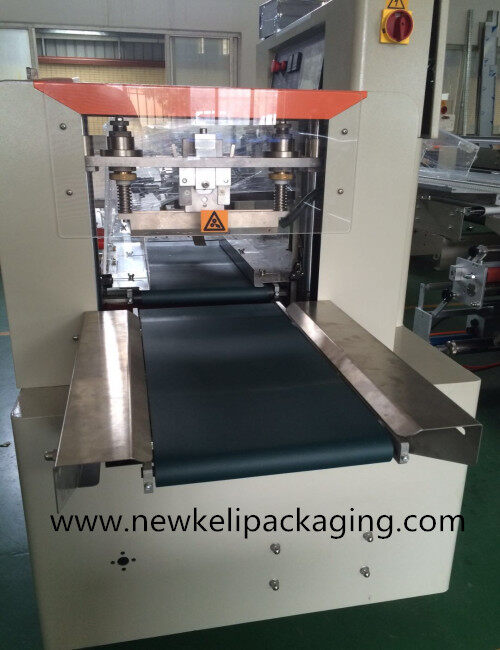

Fresh Fruit And Vegetable Flow Packaging Machine

 Fresh Fruit packaging or Vegetable Flow Packaging Machine ,bag packaging machine for supermaket ,



CONTACT US


Fresh Fresh Fruit And Vegetable Flow Packaging Machine Features:

1. Inverter motor or servo motor  control, double Panasonic transducer and PLC controller flexible bag length setting and cutting,saving time and film.
2. Human-machine interface, convenient and quick parameter settings.
3. Self diagnosis failure function, failure displayed clearly.
4. High sensitive optical electric color mark tracking system and digital input cut position, which make the sealing and cutting more accurate.
5. Separated PID control system for temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking on the knife and no waste of them.
7. Simple driving system, reliable working, convenient maintenance.
8. All controlled by program, convenient for function adjusting and upgrading.

Optional device features :
1. Date coder printer
2. Automatic Punching Device
3. Full Stainless Steel (SS304)
4.Touch screen/Digital Display (Ultra large touch screen)
5. Release the air
6. No empty bag function
7. Automatic feeder
8. Customized sealing patterns and notch
9. Single,Twin, triple,quad jaws for high speed for your choose
10. Gas device for modified atmosphere packaging(Nitrogen Charging Device,Air filling device)

Fresh Fruit And Vegetable Flow Packaging Machine Advantages:
1. All of machines from us obtained CE certificate.
 2.We test the packing machine according to your needs before delivery to make sure the machine fit the materials and your products well.
 3.We will make a video for you before delivery to let you check the quality.
 4.Our technicians get rich experiences in making packing machine.
 5.We have made many packing machines of pinpoint accuracy for domestic and abroad large enterprises.



Fresh Fruit And Vegetable Flow Packaging Machine

1. Easy to operate

2. High quality and reasonable price

3. CE certification

4. One yeas warranty

5. Reliable performance

Packing material:

Heatsealable laminated film,such as: OPP,PE,PVC,PT/PE,OPP/CPP, other special sealable packing film.Sealing Type:Back-sealed( 3 sides sealed)

1.Standard Pillow Style Bag

2.Pillow Style Bag With Hole Punch / Euro Slot

3.Gusseted Pillow Style Bag




Specification:


Model

KL-400

KL-450

KL-600

KL-680

Film Width

Max.400mm

Max.450mm

Max.600mm

Max.680mm

Bag Length

150-400mm

150-450mm

160-500mm

180-600mm

Bag Width

50-180mm

50-180mm

100-280mm

100-320mm

Products High

Max.65mm

Max.75mm

Max.110mm

Max.110mm

Film Roll Diameter

Max.320mm

Max.320mm

Max.320mm

Max.320mm

Packing Speed

30-150bag/min

30-150bag/min

20-150bag/min

20-130bag/min

Power

220V 50/60Hz 2.8KW

220V 50/60Hz 2.8kw

220V 50/60Hz   2.8kw

220V 50/60Hz   2.8kw

Machine Size

4030*770*1420

4030*820*1420

4030*970*1500

4030*1070*1500

Machine Weight

About 550kg

About 600kg

About 680kg

About 720kg


Fresh friut and vegetable flow packaging machine with tray packaging sample:
