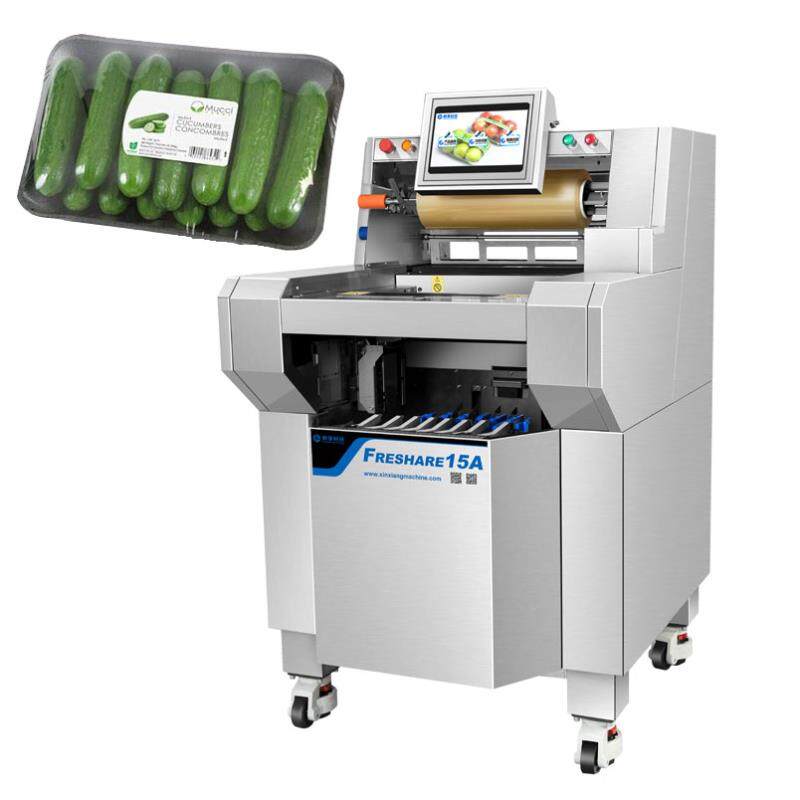

clipping film vegetable & fruit automatic packaging Machin can pack products with trays and products without trays, such as cabbage, broccoli, cucumbers,fruits etc. that need to be naked. It has multiple functions and is indeed the first choice for store packaging!

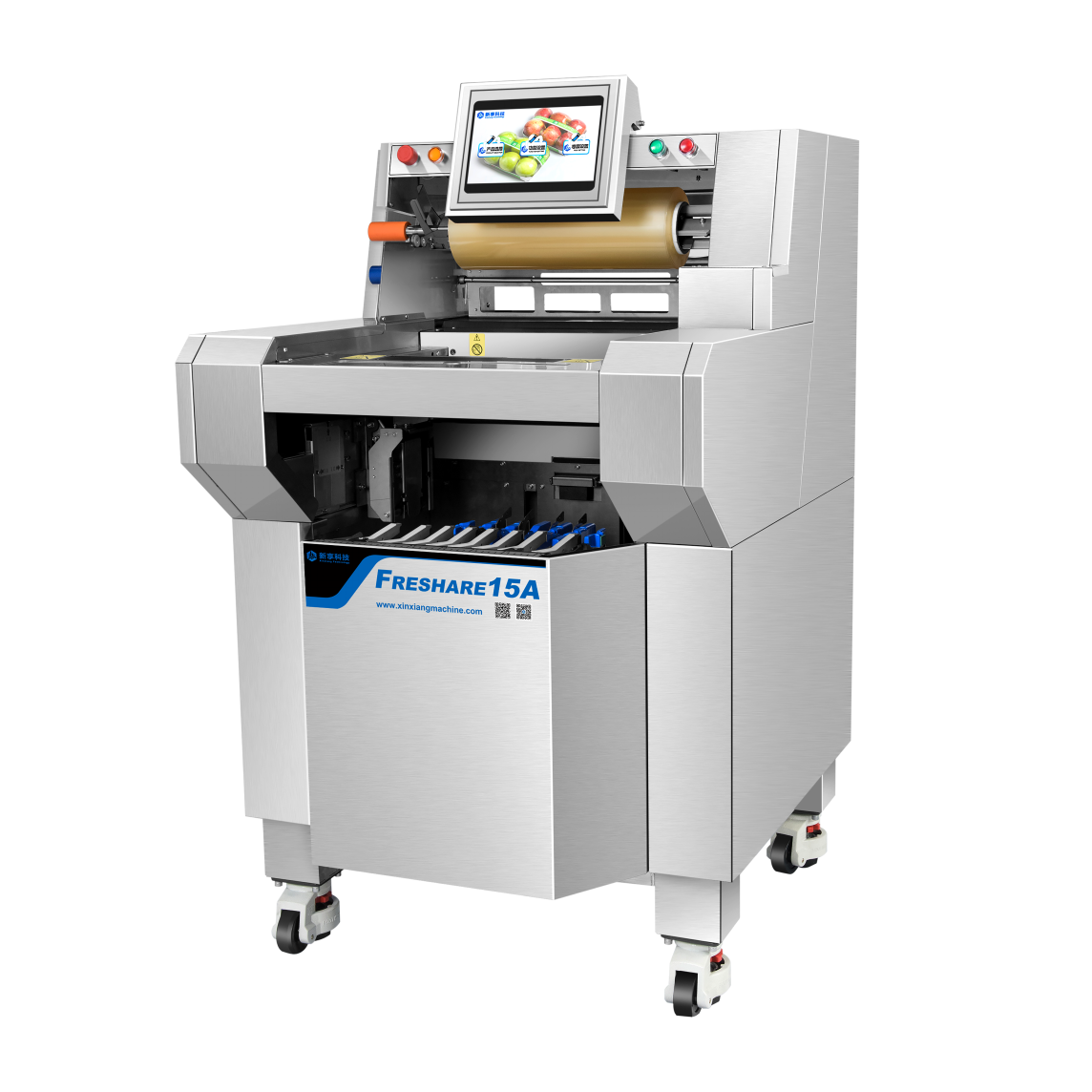

1.vegetable Cling film packaging machine Technical parameter
|
Basics |
model |
Freshare15A |
|
type |
Semi-automatic stretch film wrapper |
|
|
Dimensions(Length* width *height) |
840*888*1415mm |
|
|
Configuration |
Display |
10.2-inch TFT color touch screen (screen ratio 16:9)) |
|
Display resolution |
1024*699 |
|
|
Power Supply |
220v/110v |
|
|
Power Consumption |
1860W |
|
|
cylinder |
SMC CORPORATION |
|
|
Electric appliance |
Schneider |
|
|
PLC |
Panasonic |
|
|
Weighing component |
TOLEDO/ other |
|
|
Label printing |
Zebra/other |
|
|
Frame material |
304 stainless steel |
|
|
Working parameters |
Packing speed |
15/min 15 packs / min |
|
Package length |
80~350mm |
|
|
Package width |
80~230mm |
|
|
Package height |
10~150mm |
|
|
Package weight |
150g~3kg |
|
|
Film width |
350~500mm |
2.vegetable Cling film packaging machine Operation process

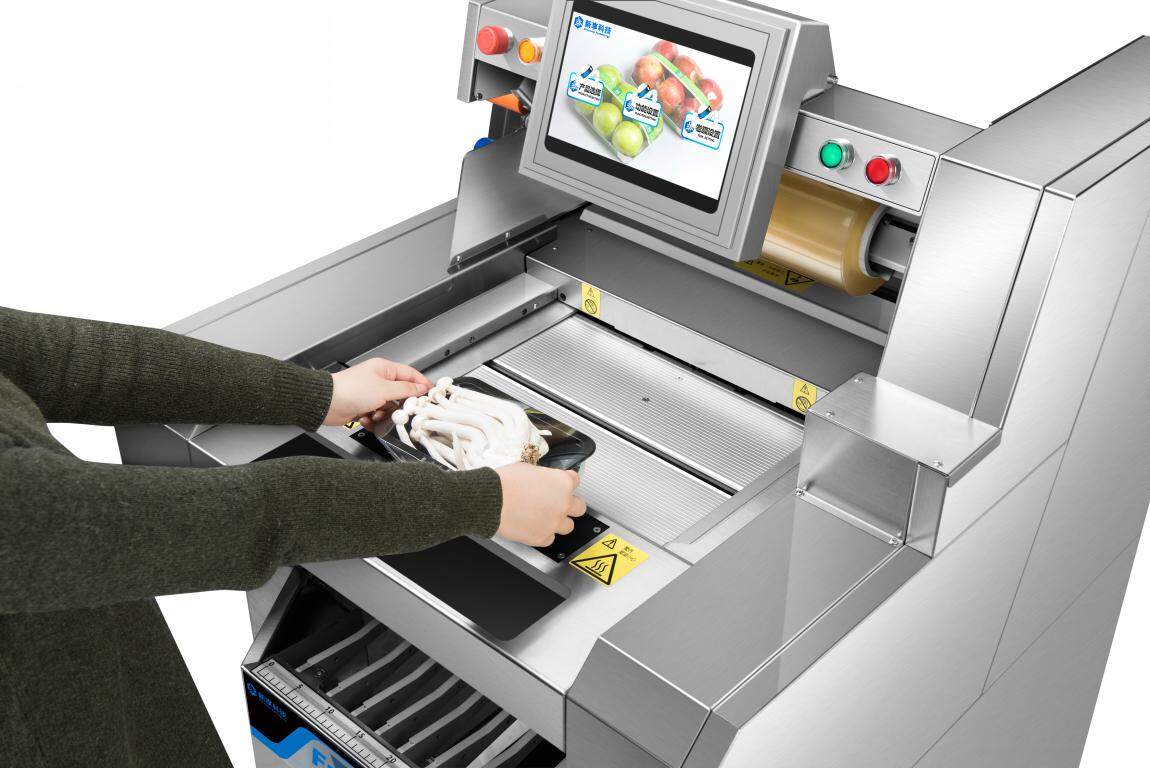

A. Semi-automatic packaging machine operation process:
1. Select the appropriate packaging data (pre-set storage)
2. Place the package in the tray position and the machine will automatically weigh
3. Remove the packaged product and gently press the heating plate
4. Paste the printed label onto the packaged item manually(if label printing is optional)
3.vegetable Cling film packaging machine Features
Available with or without tray
The occupied space is small, just plug it in and you can use it.
It can be connected to the conveyor line and the front and rear processes are semi-automatically connected (we can provide all the matching products of the conveyor line).
Low noise production
Continuous or intermittent production
Applicable to all common machine film (PVC, PE, PO), which can save costs
