volumetric filling machine,weighing filling machine,quantitative filling machine,filling and packaging machine Applicable packing products :Various powder & granule, such as: coffee, coffee bean, milk tea powder, herbal tea, small hardwares, medicine,spice nuts chocolate ball, crackers, pet food…etc granular or powder product.

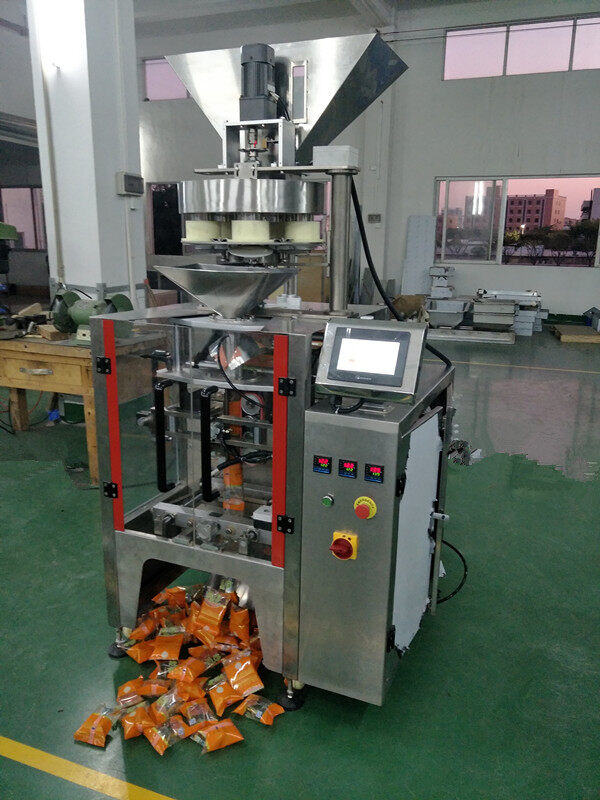

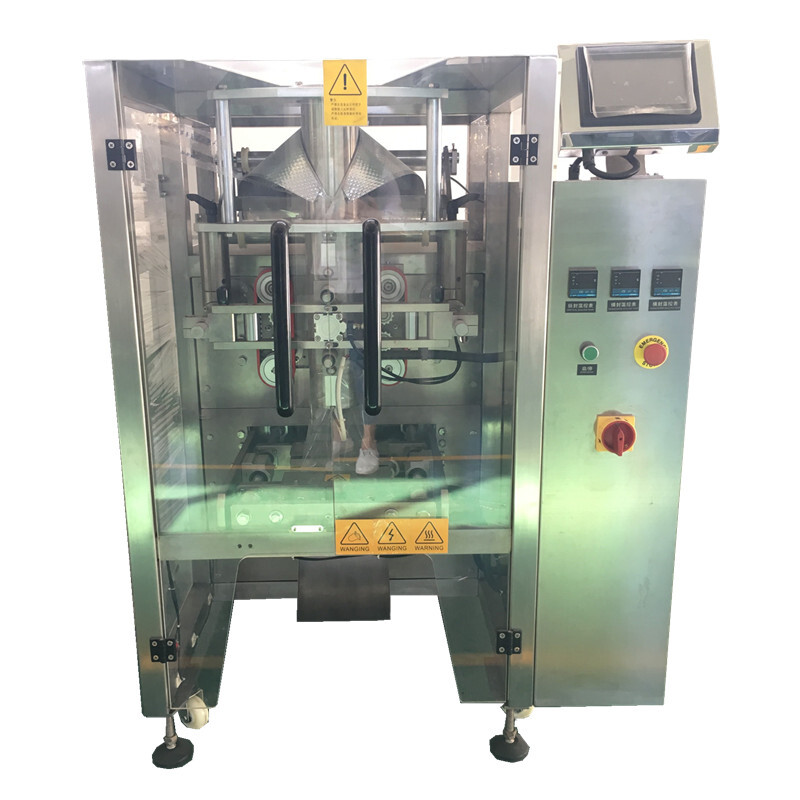

quantitative volumetric weighing filling and packaging machineTechnical parameters:
| Model | 420Vertical Form-Fill-Seal Machine |
| Packing speed | Max 65bags/min |
| Bag-making size | (L)50-300mm (W)80-200mm |
| Film material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, NY/PE, PET/PE etc. |
| Filling range | 150-1300ml |
| Max packing film width | 420mm |
| Film thickness | 0.04-0.08mm |
| Air consumption | 0.8Mpa 0.50m3/min |
| Total power/ voltage | 2.2KW/220V 50-60HZ |
| Outside size | (L)1530x(W)970x(H)1600mm |
| Gross weight | 450Kg |
quantitative volumetric weighing filling and packaging machineFeatures:
1. Equipped with safety protection, comply with firms safety management requirements.
2. The packing machine use PLC control with stable, reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting, finished in one operation.
3. PLC Control with touch panel step by Step Instruction.
4. Pulling belt film draw down system is controlled by servo motor, high precision orientation, size more nicety.
5. Stainless steel 304 contact parts.
6. External film releasing mechanism: simpler and easier installation of packing film.
7. Adjustment of bag deviation just needed to be control the touch screen. Operation is very simple.
8. Close down type mechanism, defending powder into inside of machine.
9. Make pillow bags and hanging bags in terms of customers different requirements.
10. It can finished all processes bag forming, bag sealing, packaging, date printing automatically.
