Applicant to the packing machine for food packaging,for gas influsion ~

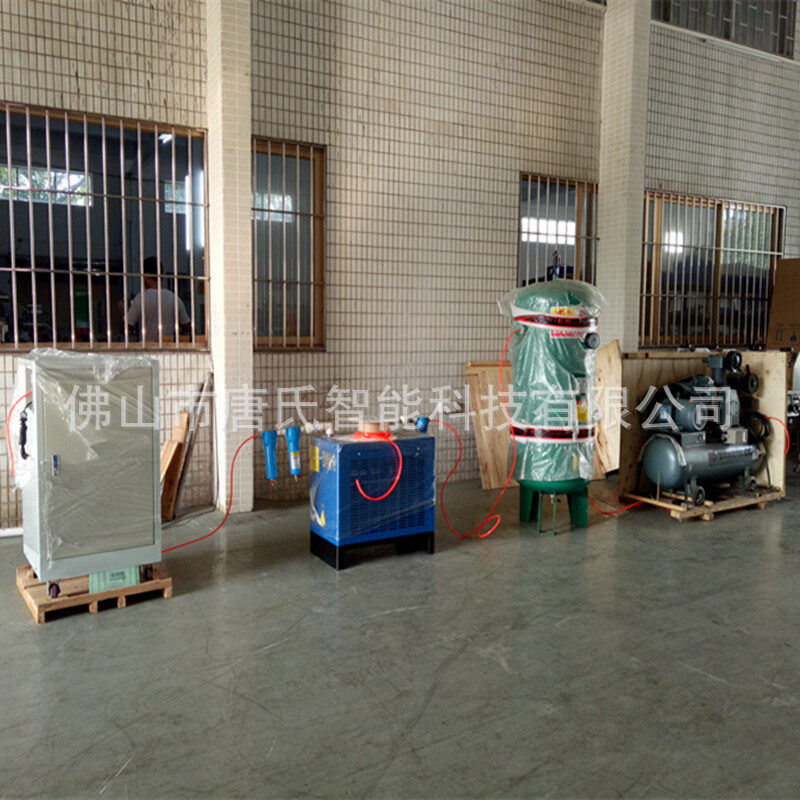

I. The Whole Nitrogen Generation System included Three Parts.
①. Oil-free Piston Air Compressor 1 set
②. Air Dryer & Precision Filters 1 set
③. ZR-5 Nitrogen Generator 1 set
Ⅱ, Specifications of Each Part of the Equipment as Following
1, Oil-free Piston Air Compressor
|
Items |
Content |
|
Air displacement |
0.6m3/min |
|
Model |
WW-0.6/10 |
|
Working pressure |
0.8-1.0Mpa |
|
Power |
5.5KW |
|
Weight |
320KG |
|
Dimensions |
1450×500×1100mm(L×W×H) |
|
Voltage |
380V/3Phs/50HZ |
|
Quantity |
1 set |
2, Air Dryer & Precision Filters
1) HRD-1FRefrigeration Air Dryer
|
Items |
Content |
|
Model |
HRD-1F |
|
Flow |
1.2m3/min |
|
Power |
0.5KW |
|
Weight |
60KG |
|
Dimensions |
680×490×670mm(L×W×H) |
|
Voltage |
220V/1Ph/50HZ |
|
Pressure dew-point |
2-10℃ |
2) H-001 Precision Filters
|
Items |
Content |
|
Model |
H-001 |
|
Flow |
1.2m3/min |
|
Disposal residues |
＜0.01um |
|
Residual oil content |
0.01ppm |
3, ZR-5 Nitrogen Generator
(1) Main Characters
*The equipment adopts the brand-newly designed filling technique and the service.
*Special bypass design ensures lower energy consumption and higher yielding results.
*Computer-aided operation with the simple technical design makes for easy maintenance of the equipment.
* In addition, such equipment has compact structure, which can be easily moved because of small volume.
(2) Technical Parameters
|
Items |
Content |
|
Nitrogen Capacity |
5Nm³/h |
|
Power |
5W |
|
Purity |
99.5% |
|
Dew Point |
≤-38℃ |
|
Air Source Pressure |
0.8-1.0Mpa |
|
Nitrogen Pressure |
0.1-0.65Mpa(adjustable) |
|
Dimensions |
590×570×1230mm(L×W×H) |
|
Voltage |
220V/1Ph/50HZ |
|
Weight |
150kg |
(3) Main Components List of Nitrogen Generator
|
NO. |
Name |
Types and Specifications |
Brand |
Country |
|
1 |
Carbon molecular sieve |
MSC-3KT-172 |
JEC |
Japan |
|
2 |
Magnetic valve |
4V320-10-DC24V |
AIRTAC |
Taiwan |
|
3 |
Controller |
DHC-9A |
DAHUA |
China |
|
4 |
Oil-water separator |
AD402-04 |
SMC |
Japan |
|
5 |
Nitrogen analyzer |
Range:79～99.9% |
MEICHENG |
China |
|
6 |
Adsorption tower |
Nonstandard |
ZHONGRUI |
China |
|
7 |
Buffer tank |
Nonstandard |
ZHONGRUI |
China |
|
8 |
Pipe fitting rack |
Nonstandard |
ZHONGRUI |
China |
