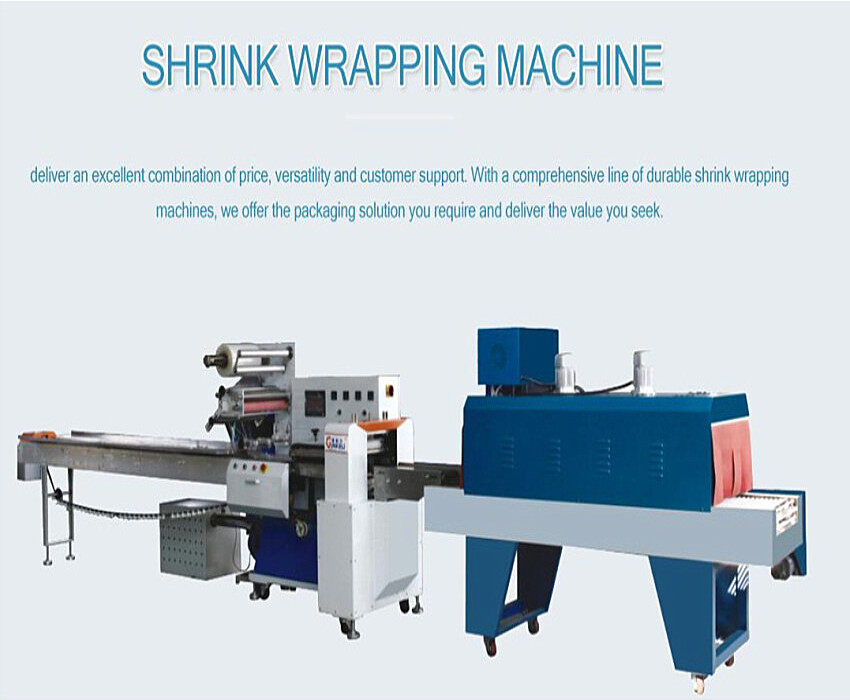

KLB-450 Shrink wrap machine
I.Main performance and structure features
1. One or many in group packed;.
2. Safety dutch equipment no harm to the
goods;
3. Waste processing equipment is available
packing in esthetics;
4. PLC based control for a more stable and
reliable system with less trouble;
5. Digital display with package length,
speed and temperature adjustable, easy and accurate to use;
6. The different conveying models to
ensure the goods not moving and rotating;
7. Reasonable and simple design makes the
operation simply and adjustment conveniently.
II.Shrink wrapping packing machine
Application

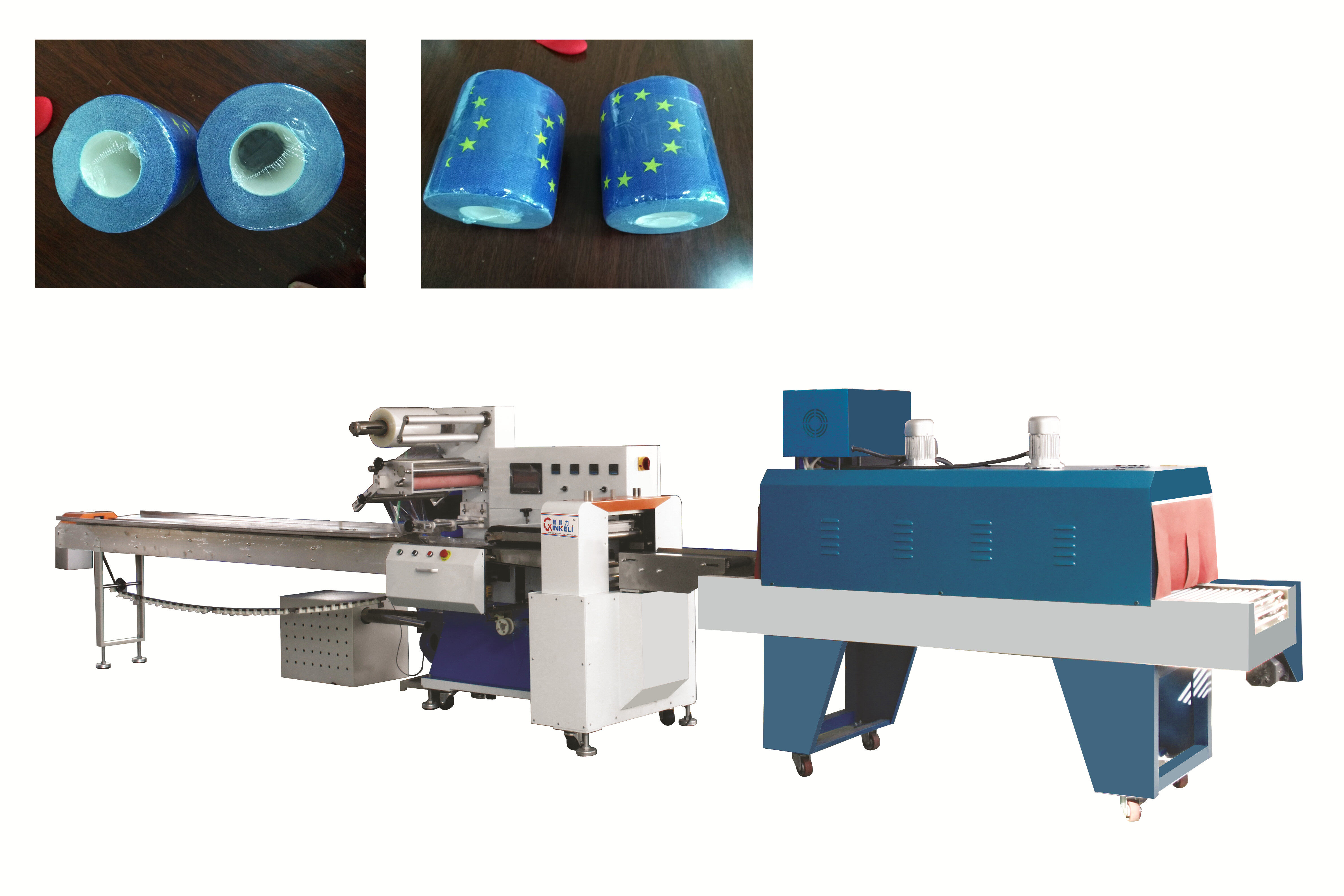

Suitable for packing regular objects such
as instant noodles with bowl, noodles, milk, solid Mosquito coil, food boxed,
comestic, plastic bottle, solid coil perfume, battery etc.
III. Shrink wrapping packing
machineSpecification
Type
|
KLB-450/150
|
Film width
|
Max. 450mm
|
Bag length
|
100-400mm
|
Bag width
|
20-140mm
|
Product height
|
35-75mm
|
Packaging rate
|
30-180 bag/min
|
Power
|
220V/ 3.6KVA
|
Machine size
|
(L)5700X(W)1050X(H)1700mm
|
Power
of Shrink tunnels blower(highest)
|
15kw
|
Weight
|
1000kg
|
Heat
shrinking POF film flow packaging machine TECHNICAL FEATURES
Packing length can be adjusted at will by touch screen
Airflow collector for leftover edge, invariable tension assuring
the longitudinal sealing firm
Nice sealing and firm package to avoid wetting
Auto feeder can be designed as per requirement
Further
option(Static sealing flow packaging machine):
Apply American static cling technology instead of the traditional
longitudinal sealing heating device, which reduces power consumption and avoid
burning worker, so more safer, meanwhile packing film required by our machine
could be narrower 20-30mm than others, which can save 5-6% film cost
Heat
shrinking POF film flow packaging machine APPLICATIONS
