Cutlery Packaging Machine for spoon fork knife

KL-250X plastic cutlery packing machine, disposable cutlery packaging machine For packing napkin, spoon, knife, fork!


contact us

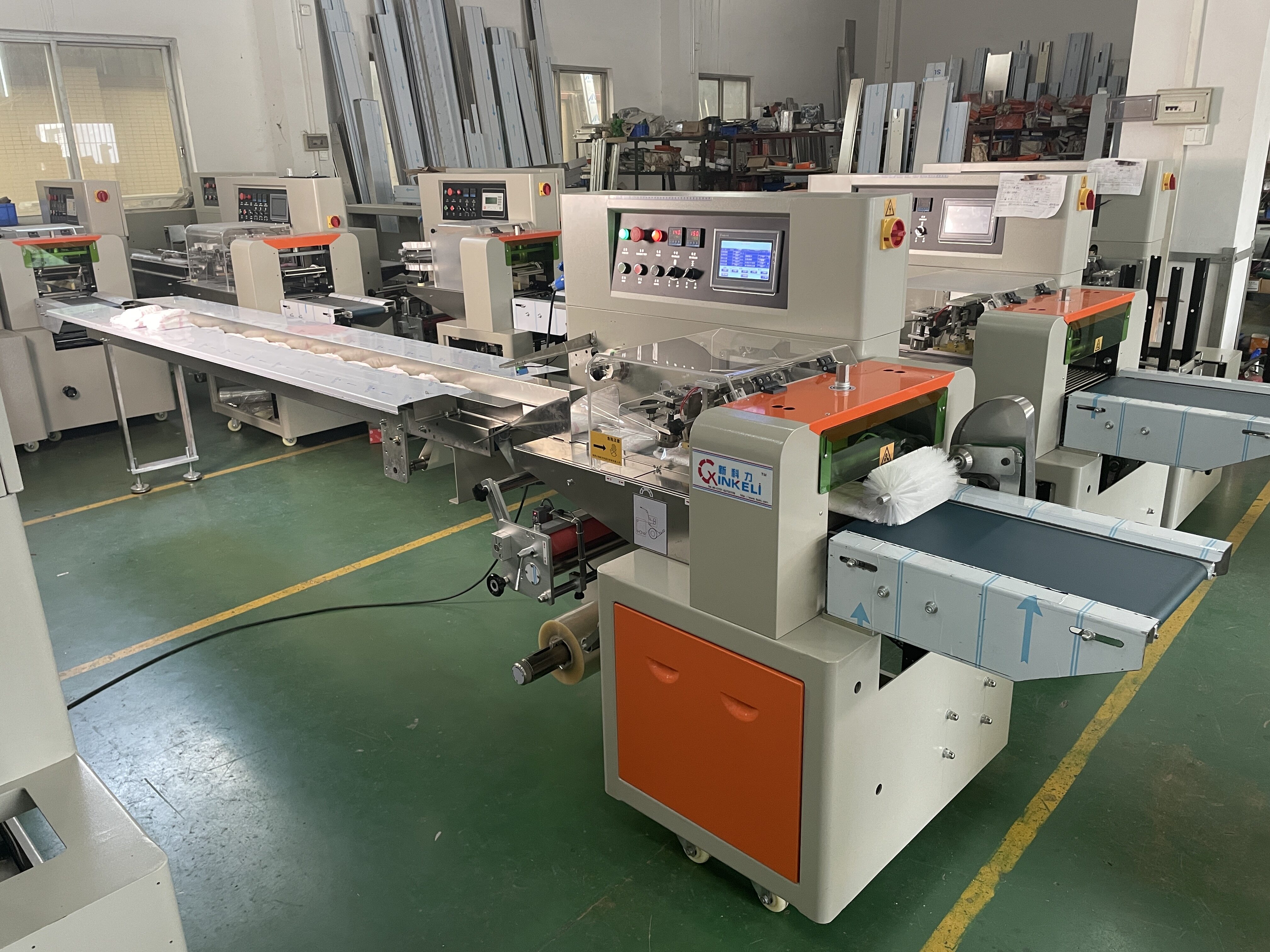

Plastic Cutlery Packing Machine

KL-250X plastic cutlery packing machine,disposle cutlery packaging machine For packing napkin,spoon,knife,fork! plastic cutlery set packing machine

plastic cutlery packing machine Description:

This machine adopts PLC intellectualized Micro-computer User-Interface Control Center, hence steady in performance with lower fault rate and easy to operate. Also the full set of steady electrical system can keep the machine with long time of working state,

Scope of Application:

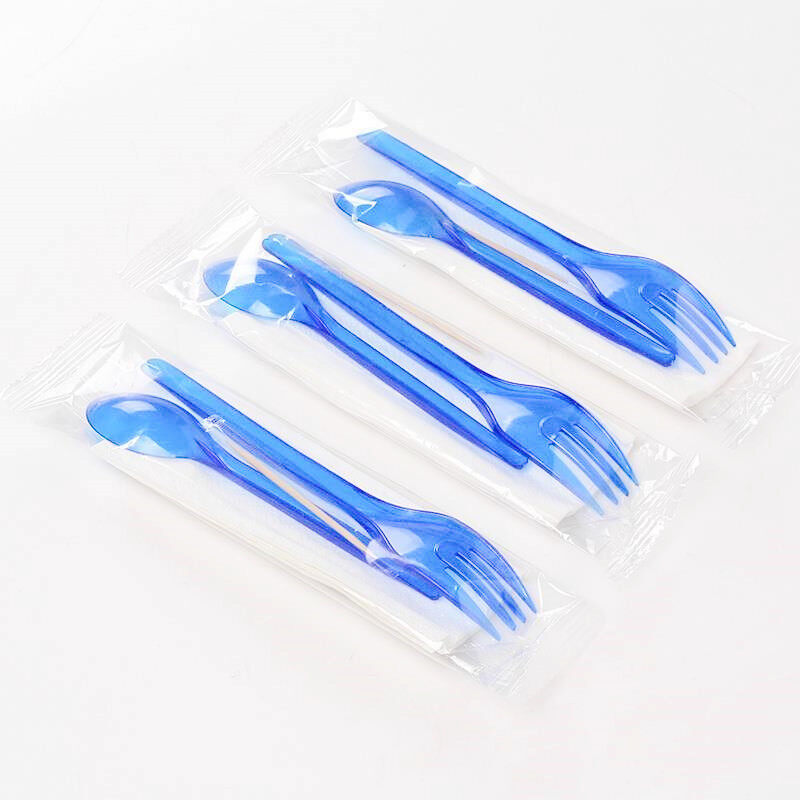

Suitable for the packing of products with irregular specification and multi-pieces or soft products such as medical pipette, sponge, ice-lolly, plastic fork, plastic scoop/spoon, mouth mask, towel, ice cream, popsicle/ice-lolly, woolen brush, glove, plastic tableware and toothbrush etc.

Cutlery Packing Machine Features:
1. This machine adopts PLC intellectualized Micro-computer User-Interface Control Center, hence steady in performance with lower fault rate and easy to operate. Also the full set of steady electrical system can keep the machine with long time of working state,

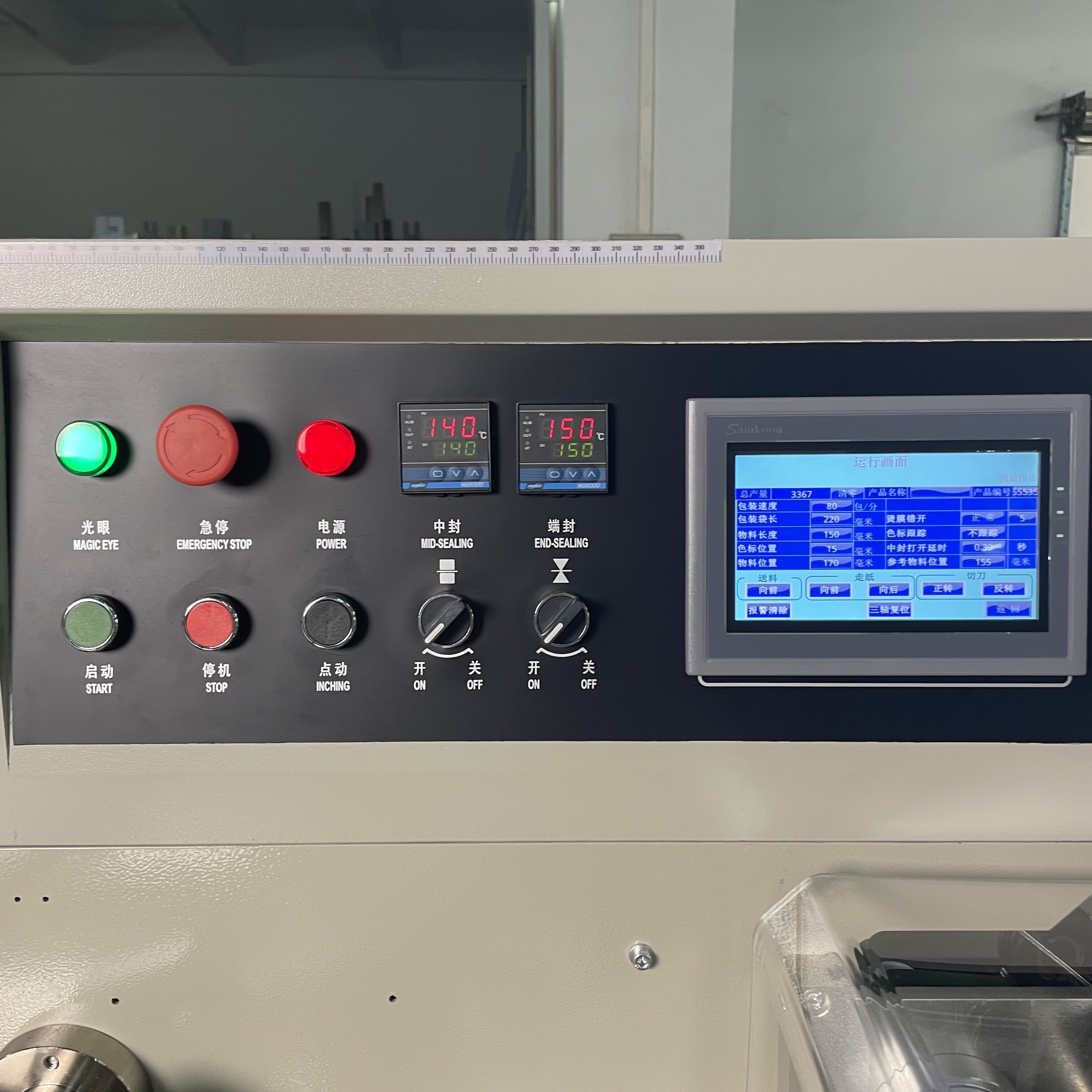

2. Human-machine interface in Chinese (English), making the setting and save easy and quick.
3. Main motor equipped with high quality AC frequency converter which makes stepless speed changing.
4. High accuracy photoelectric detection tracing system with automatic compensation in both directions for reliable accuracy.
5. Non-stage transmission used for the adjustment of bag length, which makes machine much more durable, stable and precise.
6. The downward feeding of the film and chain feeding style is used, which features great stability to the packing of the strip solid articles with regular shapes.
7. This machine can be equipped with date printer, used for the printing of produce date on bag, the printing position can be adjusted freely on bag.
8. The conveying part of machine where touch the products is made of high quality stainless steel.
9. All the machine's shell can all coved by prime-quality 304# stainless steel <Optional>.

For more information, please send inquiry to me. Thank you.

Model

kl-250X

KL-350X

KL-450X

Max. film width

250mm

350mm

450mm

Max .capacity of packing
(According to the material)

180 bags/min

150 bags/min

120 bags/min

Film thickness

0.03-0.06mm

0.03-0.06mm

0.03-0.06mm

Bag Length

50-200mm

90-350mm

90-350mm

Packing Width

25-100mm

30-150mm

50-180mm

Packing Height

≤35mm

≤50mm

≤90mm

Total power

2.4Kw  220v

2.5Kw  220v

2.7Kw  220v

Overall dimensions
(L * W * H)

4200×600×1400mm

4200×720×1420mm

4270×820×1420mm

Total Weight

650kg

750

800kg
