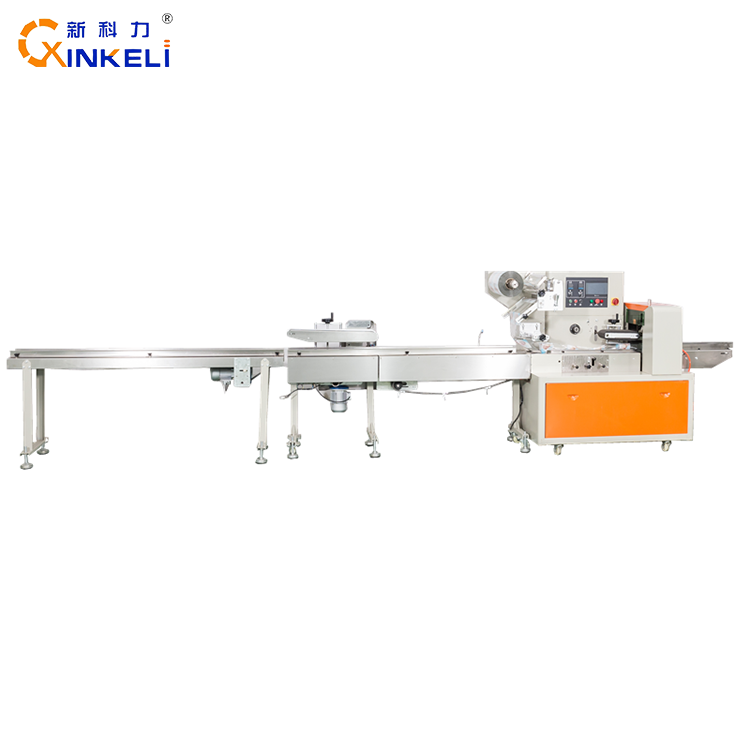

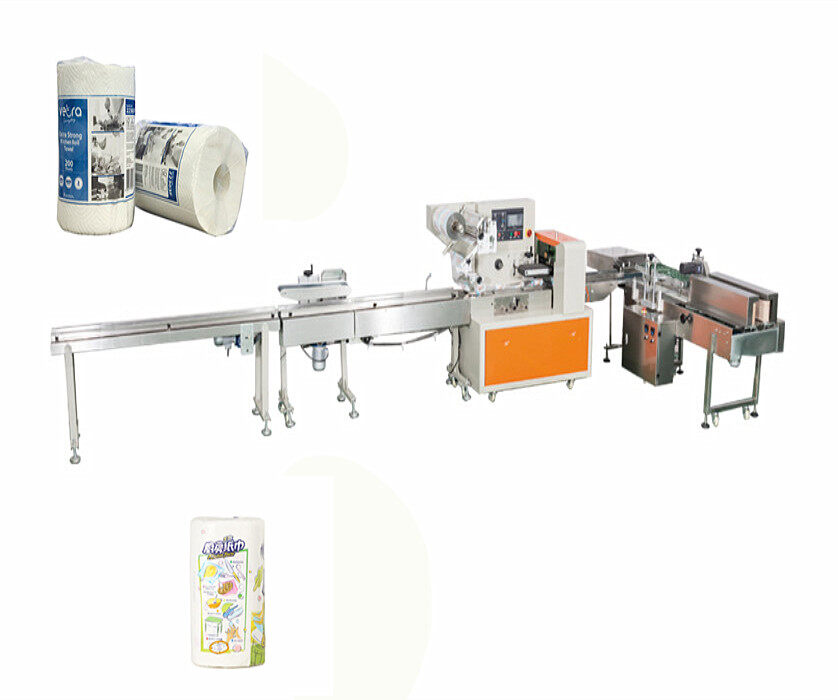

Kitchen Towel Paper Packaging Machine

This machine is mainly used for core and coreless toilet roll over-wrapping.Two Sides Sealing Toilet Paper  Roll Packing Machine with 10-120 rolls / min is used to pack single roll toilet tissue roll. The machine is full automatic and with PLC and Touch Screen.



CONTACT US

Kitchen roll paper packaging machine, single roll paper baler, automatic roll paper packaging machine, roll paper packaging machine, the packaging of the product is very important now. Therefore, the packaging workshop has always been an indispensable part of the manufacturer. All kinds of packaged goods let us see dazzling, not only the variety of products, the product's outer packaging is more charming, so the glamorous product packaging must not be done manually, after all, this is also a very large work. the amount. Packaging raw materials and packaging machine equipment is the consumer's concern, as we usually use some simple film packaging, and the pillow packaging machine is to change this situation as much as possible, from the choice of raw materials to The final packaging effect can meet the company's demand standards.

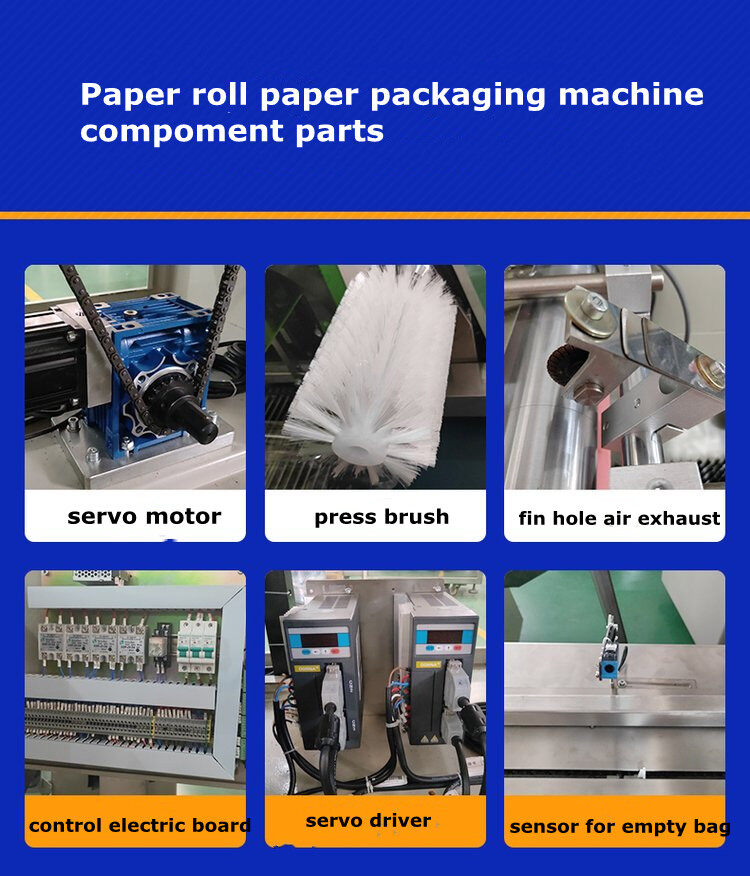

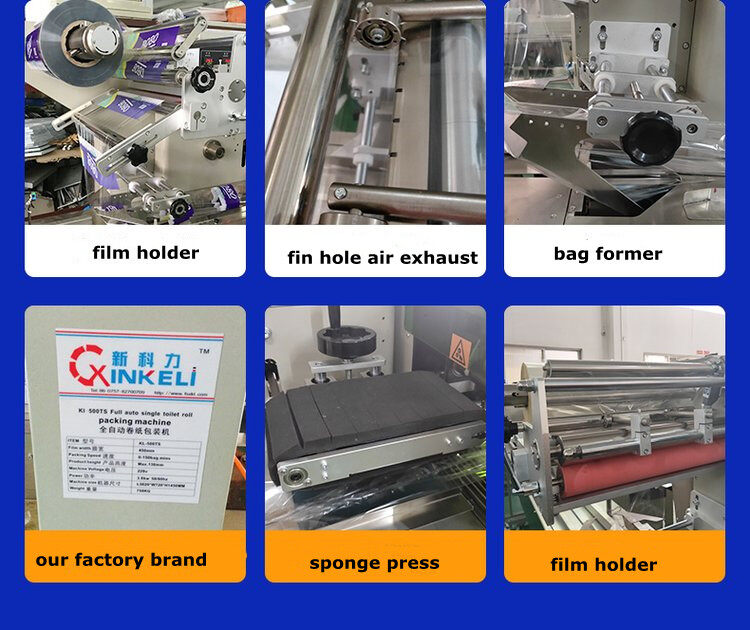

Kitchen Towel Paper Wrapping  Machine Features:

01. Full servo control system, all independent programming, all controlled by the software to facilitate the function of restructuring and technological upgrading,advanced

02 human-machine operation, convenient and quick parameter setting.

03. Fault self-diagnosis function, clear failure display.

04. Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

05. automatically recognizes the bag length according to tissue products, machine adjustment is simple.

06. Positioned stop function, without sticking knife, CPP and CPP-sided heat sealing film and color packaging films can be packaged, not wasting film.

07. Simple driving system, reliable working, convenient maintenance.

 08. It can automatically connect with roll Cutter, without manual working,  saving labor costs.

09. No product machine will stop,will not have empty bag. never waste film.


model

KL-500TS

Packaging film width

Max.450 mm

Bag width

60-210 mm

Paper diameter

Max.130 mm

Packing speed

60-150 packs / minute

Machine voltage

220 V

power

3.0 KW 50/60 HZ

Machine size

(L) 5020*(W)720*(H)1450 mm

weight

750 KG
