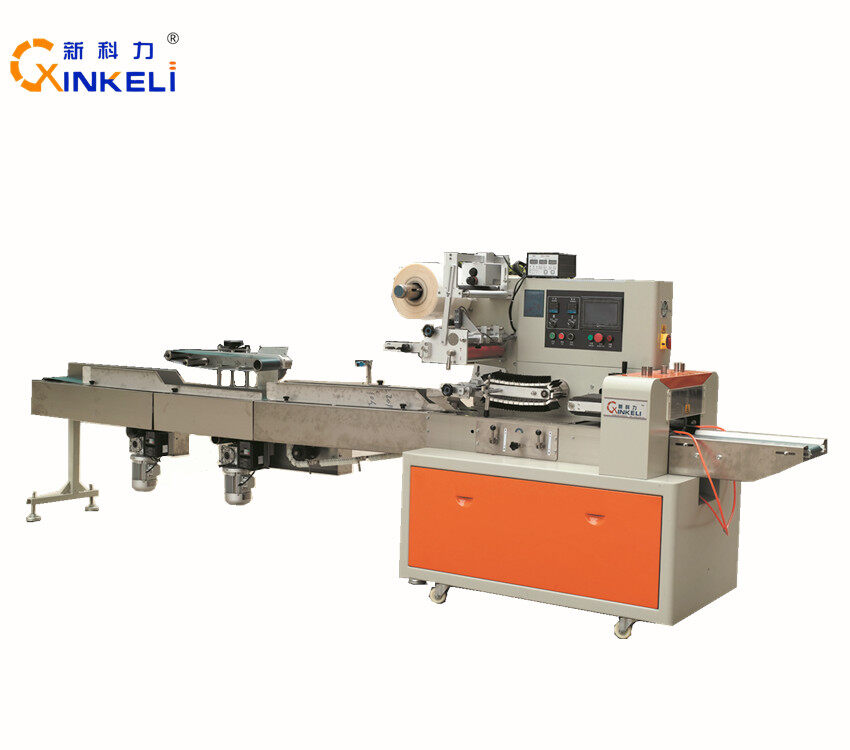

High Speed Full Auto Tissue Packaging Machine

Tissue packing machine, automatic tissue packaging machine ,flow pack machine for tissue,Full Automatic tissue Paper packing machine Production Line, tissue plastic packing machine



(1) Main performance and structural characteristics

1.   1.This machine is controlled by three servos and double frequency converters. The bag length and material level are automatically sensed. No need to adjust the air, one step in place, saving time and film.

2. Man-machine interface, parameter setting is convenient and quick.

3. Fault self-diagnosis function, the fault display is clear at a glance.

4. High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.

5. Temperature independent PID control, better suited to a variety of packaging materials.

6. Positioning stop function, no sticking knife, no waste film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All control is realized by software, which is convenient for function adjustment and technology upgrade, and never lags behind.

9. It can be automatically connected with the front end paper cutter without manual paper cutting.

10.Automatically adjust the packing speed according to the speed of the paper cutter. When no material is used, no film will be taken and no empty bag will be produced.

(2) Tissue  Packaging  machineScope of application

It is suitable for the packaging of soft tissue, facial tissue, portable paper towel, hotel paper and other tissue products.

(3)Facial Tissue  Packaging  machineTechnical specifications


Film width:Max.400mm

Bag width:50~185mm

Product height:Max80mm

Film roll diameter:Max.320mm

Packing speed:20-120packs / min

Power Specifications:220V, 50/60HZ, 2.8KW

Machine size:(L) 5020 × (W) 720 × (H) 1450mm

Machine quality:650Kg

Remarks:Pinhole exhaust
