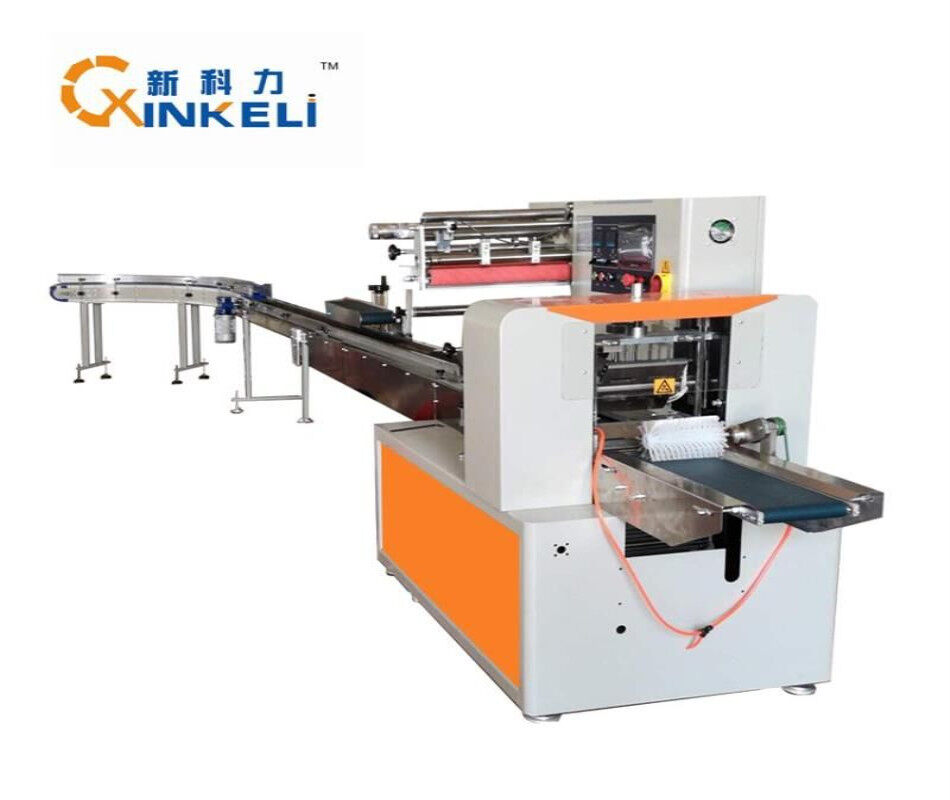

KL-500 Semi-auto economic single toilet roll paper packing machine

1)Different from the degree of intelligence, the toilet roll paper packaging machine is divided into two types: fully automatic and semi-automatic. They are packaged in roll film bags. Automation refers to the use of machines for connection, no manual intervention is required, and semi-automatic models require manual paper loading. The packaging effect and principle are the same.

(2) Scope of application Semi-auto economic single toilet roll paper packing machine

It is suitable for single bag packaging of independent toilet paper, cored and coreless.

(3)Semi-auto economic single toilet roll paper packing machine Technical parameters

1) Main performance and machine characteristics1. Double frequency conversion simple mechanical structure, easy maintenance, less wear and long life.

2. Human-machine interface, parameter setting is convenient and fast.

3. Fault self-diagnosis function, the fault display is clear at a glance.

4. High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, sealing and cutting position is more accurate.

5. Temperature independent PID control, better adapt to various packaging materials.

6. Positioning stop function, no sticking knife, no waste film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.8. All control is realized by software, which is convenient for function adjustment and technical upgrade, and never lags behind.

Semi-auto economic single toilet roll paper packing machine Specification:

model:KL-500T

Packaging film width:Max.450 mm

Bag width：60-210 mm

Paper towel height：Max.130 mm

Packing speed：60-150 packs / minuteMachine

 voltage ：220 Vpower2.6 KW 50/60 HZ

Machine size：(L)4020*(W)820*(H)1450 mm

weight：800 KG

Now, according to the reflection of market customers, employees are ask for high cost and business is not good. Many manufacturers who make roll papers want to buy a packaging machine that can be used more. For example, core and coreless roll wrapping machines can be used universally? Almost the same product can be packaged in one machine. Reduce the customer's investment and the machine must to be practical. New Keli's packing  machine  cored and coreless roll paper can be packaged in one machine. The coreless roll paper is not exhausted. The new Keli packaging machine can be equipped with a punching machine on the packaging machine to make the packaging effect more beautiful. Customers use it more conveniently.

Semi-auto economic single toilet roll paper packing machine Optional device

(1) Automatic coding machine

(2) Automatic punching machine

(3) ironing machine

Semi-auto economic single toilet roll paper packing machine packaging roll paper sample:
