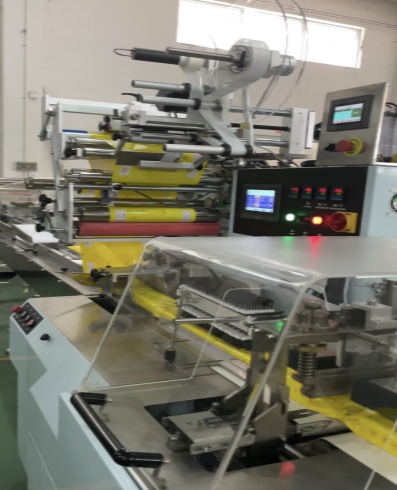

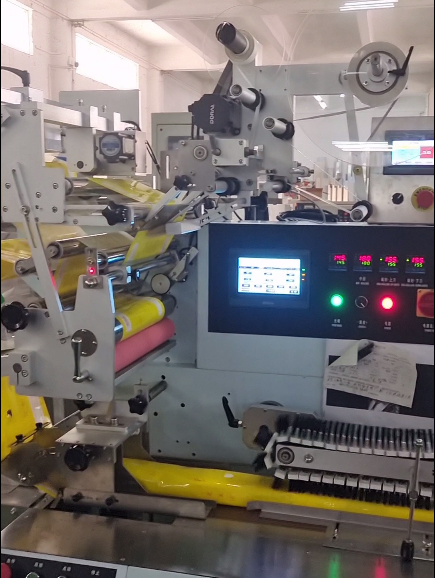

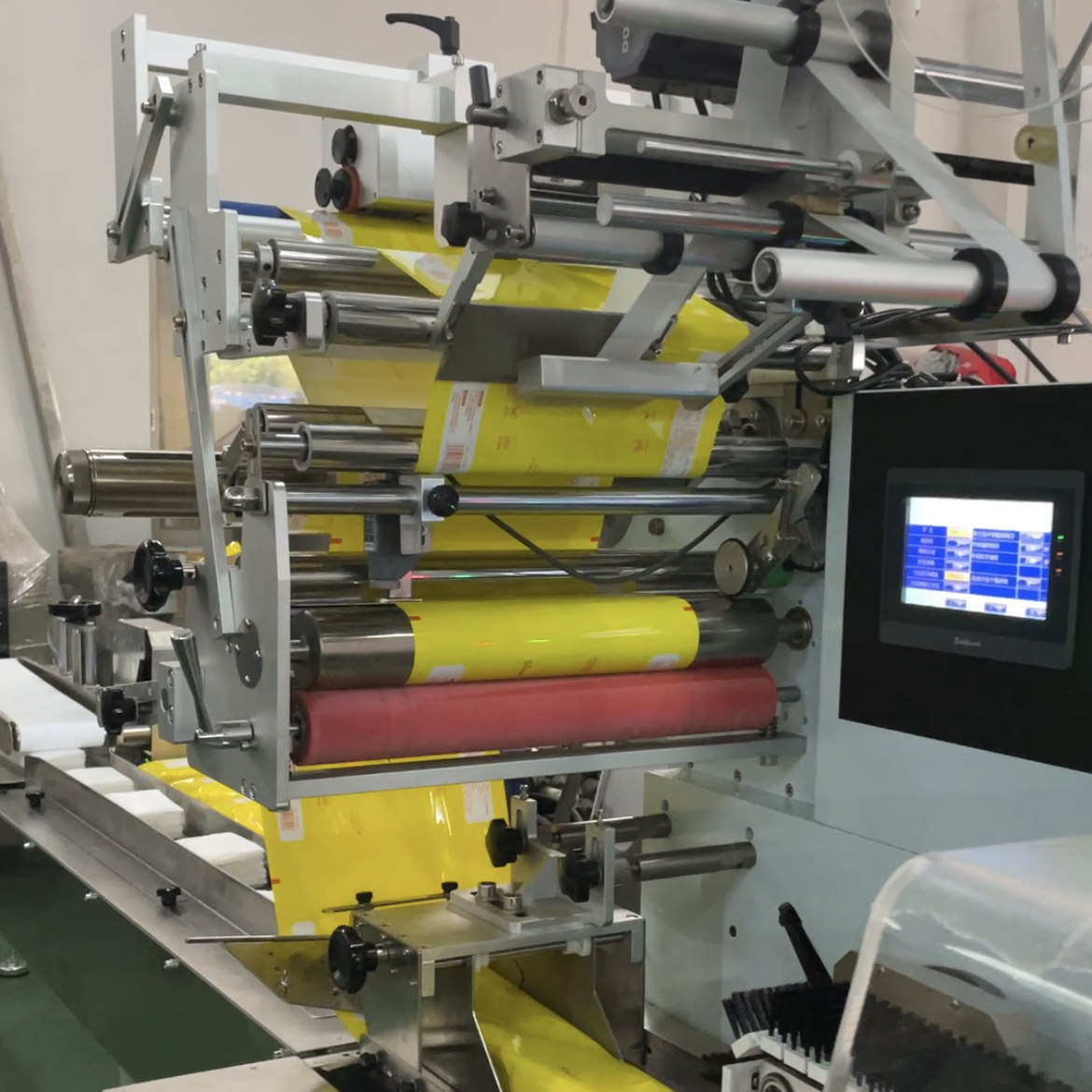

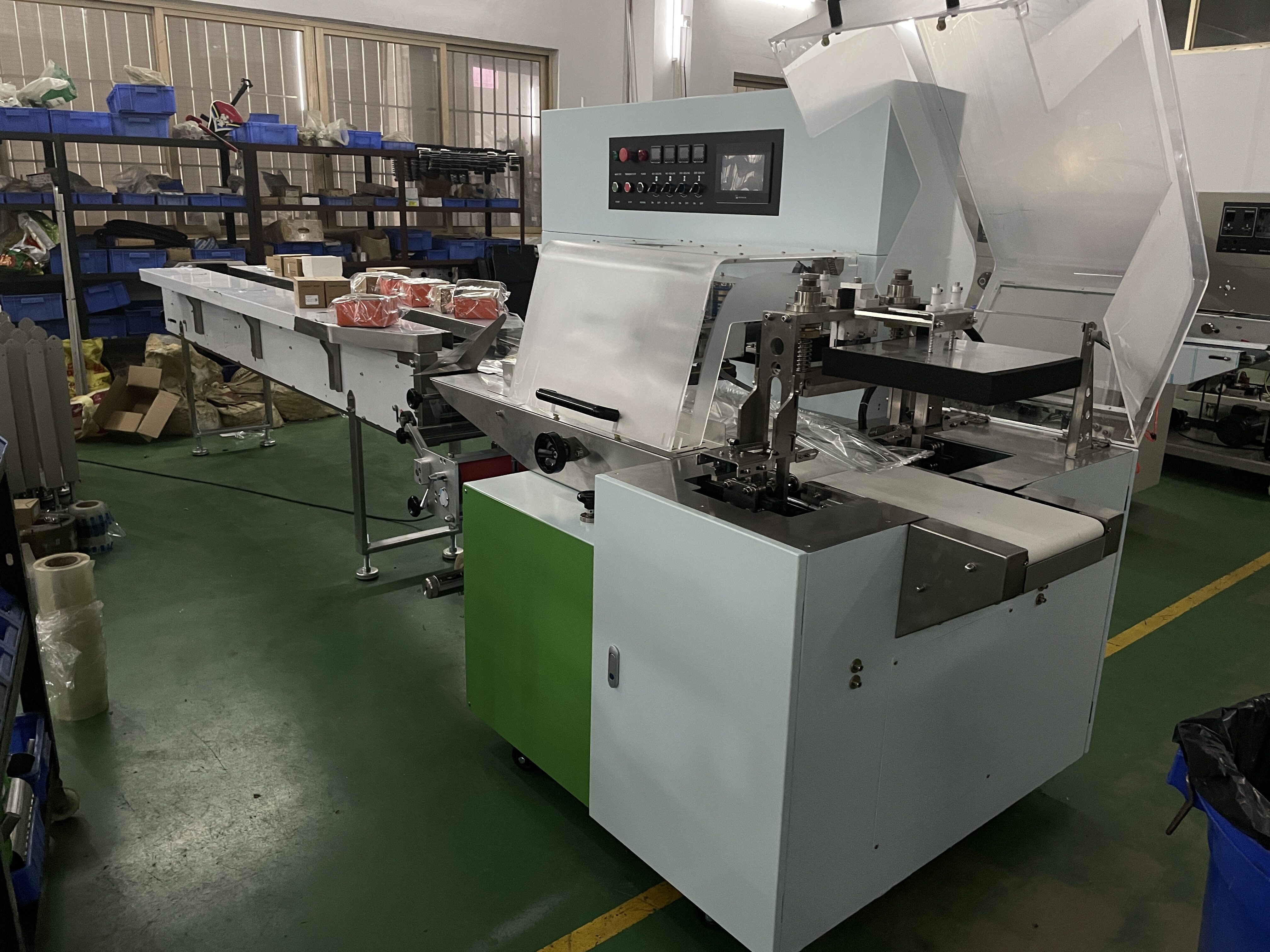

Flow Pack horizontal packaging machine for cleaning wet wipes

1. Performance and structural features of the equipment:

2. Working principle of the equipment: unwinding → printing date → photoelectric tracking → packaging forming → back seam → transverse seam cutting → finished product output, fully automatic.

3. The equipment adopts PLC programmable controller to make the whole machine run programmatically.

4. The main machine speed, bag length setting, compensation amount and output of the equipment will be displayed on the screen, which is clear at a glance. 5. The change of the equipment packaging length can be set directly on the display screen, and the computer program will automatically adjust to the set length without manual operation, which is very fast.

6. The equipment adopts high-sensitivity photoelectric detection sensor color mark tracking, and the length is set and cut, making the marking fast and accurate.

7. The equipment stitching temperature is independently PID controlled, which is better suitable for various packaging materials and improves the sealing quality.

8. The whole machine has a compact structure, fast packaging speed, stable and reliable performance, high degree of automation, and simple operation. It is the preferred product for producing whole packaging! 9. It can be equipped with punching machine, labeling machine, coding machine, etc.

II. Technical parameters of the equipment:

Production capacity 30-100 bags/min (depending on the packaging material)

Packaging size Length 100-700mm Width 100-300 Height 0-120mm

Rated frequency 50HZ Rated voltage 220V

Total power 3.0 kW

Machine weight 1000 kg

Overall dimensions (mm) Length 4500×Width 1400×Height 1600
