capsule pouch filling and Packaging Machine

capsule pouch bag Packaging Machine The machine could automatically complete all tasks of measuring, bag making, filling, sealing, printing batch No. cutting, easy-to-tear cutting mouth and counting etc.;



CONTACT US

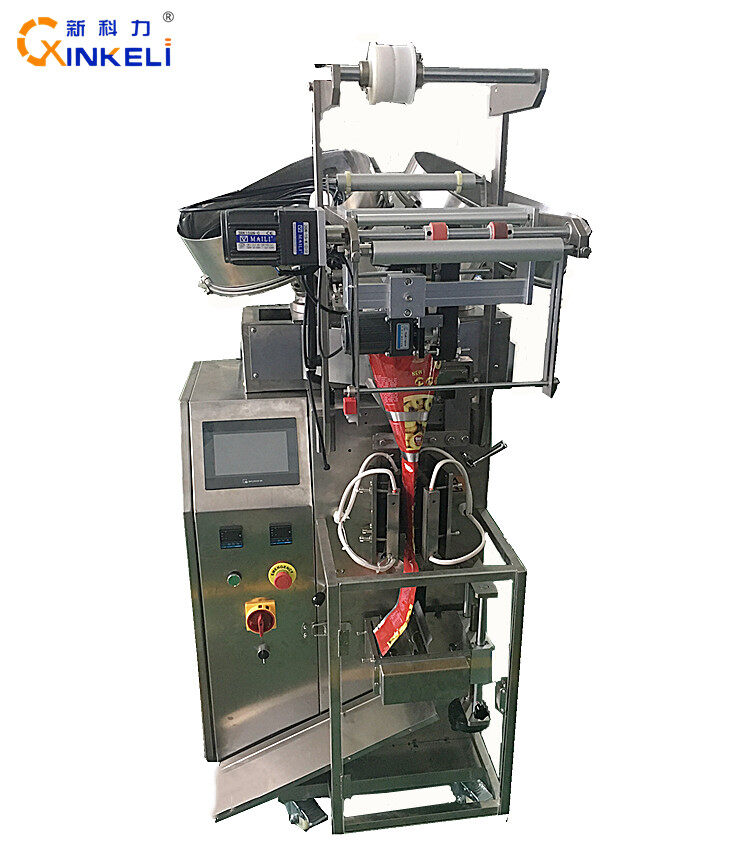

capsule pouch  Packaging Machine









Technology feature:

Model

kl-160p

Name

Automatic Tablet Packing Machine

Bag’s size

Width:30-100mm ; Length:30-160mm

Film’s Max Width

220mm

Bag’ Type

3 Sides Sealing  back side sealing

Capacity

30-75 Bags /min

Measuring Mode

Tablet Counter

Control Style

Imported PLC control System+ English operation screen

Power

1.2KW

Power Supply

AC220v single-phase 50Hz

Appearance

Stainless Steel 304

Weight

Net Weight :185Kg  Gross Weight: 220Kg

Dimension

L: 700× W:600× H:1750mm

Packing Film

Composite or laminated film that can be heat sealed,such as paper/polyethylene;

cellophane/ polyethylene; plated aluminum/ polyethylene; BOPP /polyethylene ;

nylon / polyethylene

capsule  Sachat Bag Packaging Machine Features:

1) Be able to count, form bag, seal, cut and printing date(with date printer) automatically.

2)To has color control system which can get the complete trade mark design.

3) The machine fix stepper motor controller, its advantage is precise, needless to adjust other parts

4) Intelligent temperature control by temperature controller to make heat balance. better.use bilingual display screen control system and stainless steel cabinet.

5) Fine Packaging Performance, low noise, clear sealing texture and strong sealing performance

6) Optional Set: ink stamp coding machine .It can print manufacture date, expiry date and lot number, It needs paying.

7) With safe plastic box on rotating blade to avoid hurting operator's hands

8) Material is stainless steel 304 and adopts imported PLC control system

and very professional experience . Good stability, good use and durable in using time

9) Professional experience and higher technology.



Our Services

1.Guarantee period: One year (Attention: Machine's warranty range don't

Include damageable Spare Parts; For other parts, providing new free parts For clients a in warranty period)

2.Tenure of year:8-10years
