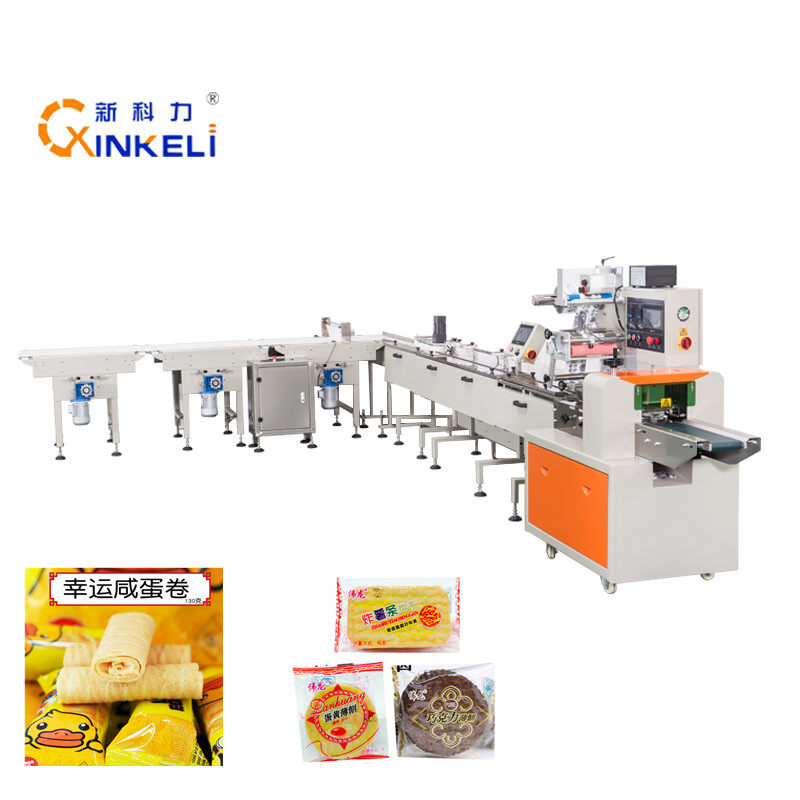

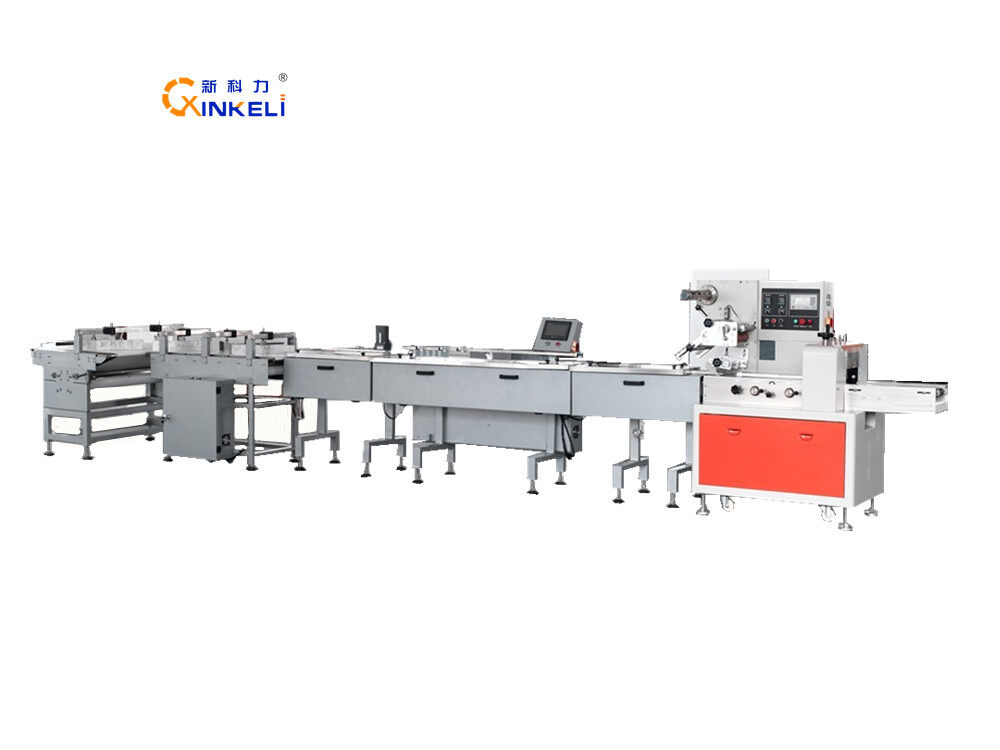

High speed automatic protein bar horizontal packing machine

Packaging All Knids Of Regular Object:Bisucut,Cake,Bread And More USE this horizontal  flow pack machine ,auto feeding packing ,High speed,cost saving,reduce pollution.





CONTACT US

High speed automatic protein bar horizontal packing machine  MAIN FEATURES

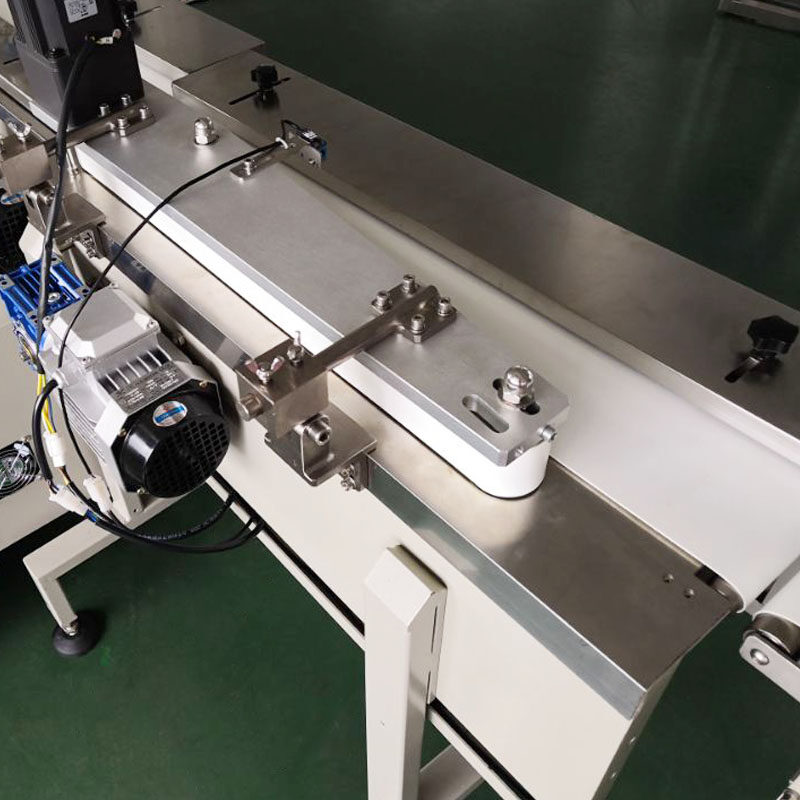

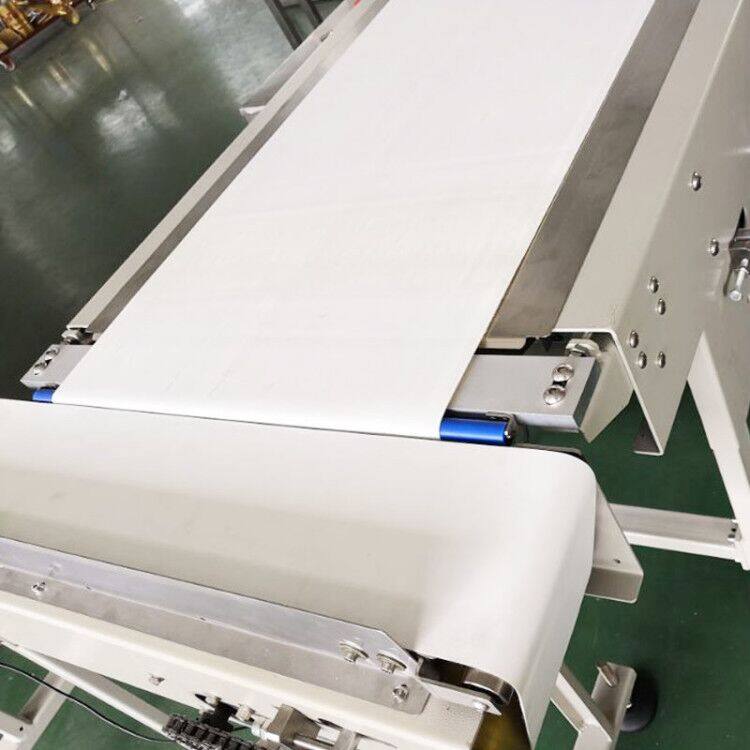

1. The front conveyor belt of this line can be connected with the outfeed conveyor belt of user’s front-end production line for fullautomatic continuous feeding and packing, or by manual products dumping on the conveyor belt for conveying and packing.

2. The packing line can be customized according to user’s individual requirements.

3. With multi-stage frequency conversion for speed adjustment, servo control and intelligent PLC control system, it is characteristic of simple operation, stable running, high control accuracy and low energy consumption.

4. Color LCD touch screen with intuitive HMI display for parameters setting. Fault self-diagnostic display on the screen helps trouble shooting.

5. The data memorystorage function helps to change product sizes.

6. Automatic defective product rejecting function is available to ensure continuity and stability of production.

7. High precision and high sensitivity SICK brand photo sensor tracking system ensures accurate product positioning.

8. The machine configuration is made of complete stainless steel and alu-alloy profiles. With user-friendly design, it is simple and fast in installation, disassembly, repair and maintenance.

9. At user’s demand, extra units of code printer, inkjet printer, air charging device or alcohol spray device can be equipped on the machine for different purpose.



High speed automatic protein bar horizontal packing machine Specification

Machine Weight(Kg)

kl-100

Film Width(Mm)

Max.250

Machine Speed

40-230 Bag/Min

Machine Size (Mm)

L3750*W875*H1420

Film Roll Diameter

Max.320 mm

Packing Film

Any Heat Sealable Laminated Roll

Power

220V.50/60Hz.3.2Kw

Product Application

Packaging All Knids Of Regular Object:Bisucut,Cake,Bread And More.

Bag Length (Mm)

65-280mm

Bag Width (Mm)

30-110mm

Produce Height(Mm)

10-55

Machine Motion

Continuous

Machine Control Through

PANASONIC PLC

Packing Film Pulling

Through Electromagnetic Clutch And Brake

Contact Parts

Food Grade Stainless Ss 304

Sealing Type

Pillow Bag

Main Motor

Panasonic

Temperature Controller

Pid Based

Machine Features

Dual Frquency Conversion Control,Automatic Stop In Case Of Material Absence

Language

English+Arabic+Any

Additional

Toolbox+Operation Instruction

Optional Features

Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device
