Main Performance And Structure Features:
• Automatic feeding and packing. ( Can be customization according to product characteristics)
• For Stable Performance: Dual inverters controller, upgradable PLC system, self-failure diagnosis, double encoder.
• For Easy Operation: Touch screen monitor, independent temperature PID controller,
• For Adaptability: one set of machine can be applicated to different kind of product via optional devices, such as air-filling device, feeding line, etc.
Machine Specification:
|
Type |
Kl-250 |
Kl-320 |
Kl-350 |
Kl-400 |
|
Film Width |
Max.250MM |
Max.320MM |
Max.350MM |
Max.400MM |
|
Bag Length |
65-280MM |
65-330MM |
65-330MM |
150-400MM |
|
Bag Width |
30-110mm |
50-150mm |
50-160mm |
50-180mm |
|
Products High |
max.55mm |
max.55mm |
max.60mm |
max.65mm |
|
Packing Speed |
40-330bag/min |
40-230bag/min |
40-180bag/min |
30-150bag/min |
|
Power |
220V 50/60HZ 2.4KW |
220V 50/60HZ 2.6KW |
220V 50/60HZ 2.6KW |
220V 50/60HZ 2.8KW |
|
Optional Device |
Date Coder / Air-filling Device / Punching Device |
|||
|
Machine Size(mm) |
3770x680x1420 |
3770x720x1420 |
4020x770x1420 |
4020x770x1420 |
|
Machine Weight |
500kg |
550kg |
580kg |
600kg |

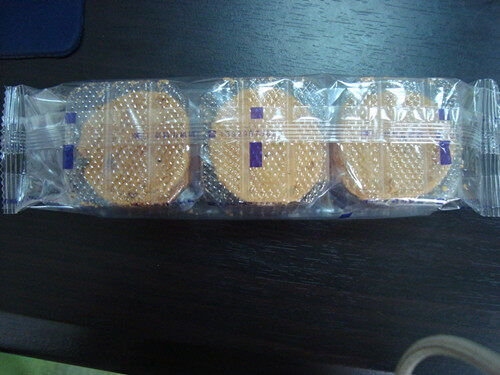

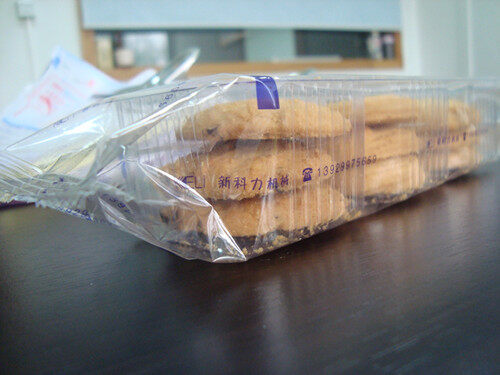

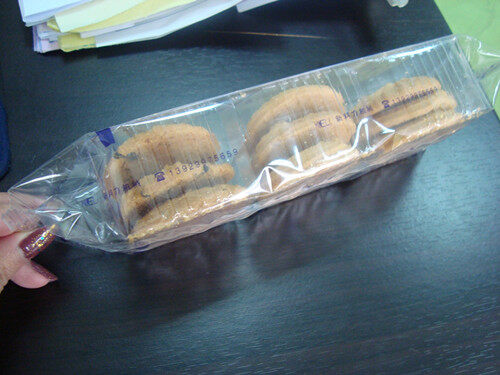

Applications:
Food : cake, bread, biscuits, cookies, meat muffin, flaky pastry, moon
cake, several sausage in a bag, noodles, beef jerky, egg roll, etc
