Auto Filling Feeding Line Granola Bar Packaging Machine

KL-100 granola bar packaging machine (automatic feeding) Element bar packaging Cereal bar packaging Candy bar packaging Chocolate bar packaging protein bar packaging Peanut bar packaging Sesame snap packaging. This bag filling and sealing machine is full automatic feeding and packaging,Save labor, low cost, high effective,clean, reduce  hand pollution,easy operation



CONTACT US

KL-100 granola bar packaging machine (automatic feeding)



This bag filling and sealing machine is full automatic feeding and packaging for

Element bar packaging

Cereal bar packaging

Candy bar  packaging

Chocolate bar packaging

protein bar packaging

Peanut bar packaging

Sesame snap  packaging

, if you want cheap and semi-auto pls check our website the other kind flow wrap machine,





 Product Application

1:Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.

2:human-machine operation, convenient and quick parameter setting.

3:Self diagnosis failure function, clear failure display.

4:High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.

5:Separate PID control to temperature, suitable for various packing materials.

6:Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7:Simple driving system, reliable working, convenient maintenance.

8: All the controls are achieved by software, convenient for function adjusting and upgrading.



Advantages:

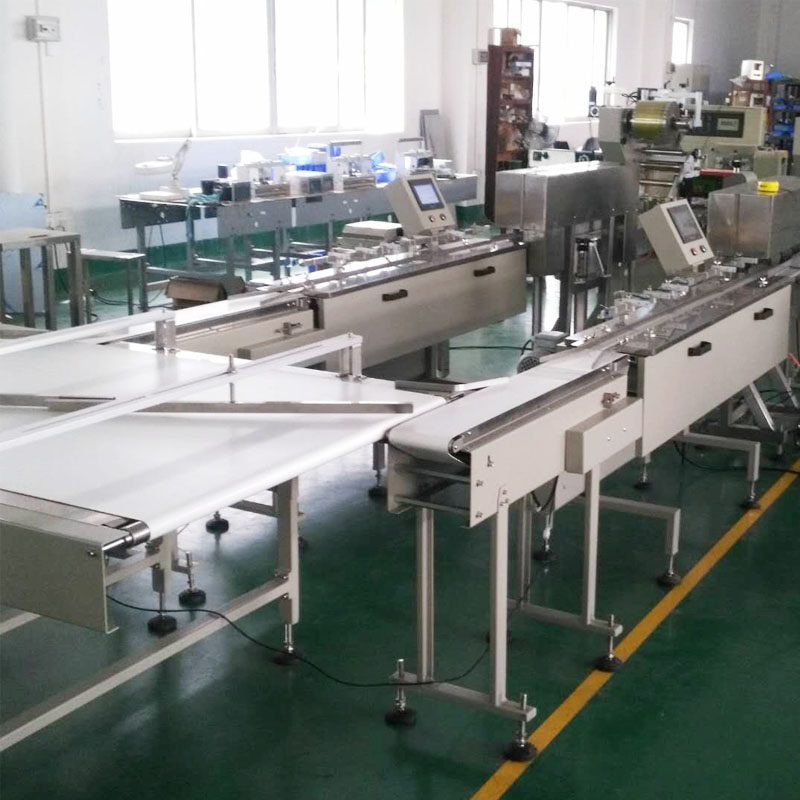

1. This feeding line automatic controlled by the same control system, and the speed is implemented with the linkage mechanism: when end feed materail not enough ,the front feed will replenishing material very fast ,The end feed is full,, the front feed will be slowed;When the back feed stopping, (packaging machine) stops, the front feed stops.also

2. Reduce the stop frequency of the packaging machine and ensure the quality of the product sealing, which is suitable for the products with high requirements.

 granola bar packaging machine

Application

The granola bar packaging machine is suitable for packaging various kinds of regular objects like :

Food : like Biscuits, Pies, Chocolates, Bread, Instant noodles, Cup Cakes, Energy bar, Ice cream bar, sopa bar etc ...





item

Kl-100

Feeding speed

40-180bag/mins

Product length

20-150mm

Product width

20-80mm

Product height

5-50mm

powder

5.7KW

Machine weight

1400kg

Size of machine

7500*950*1200mm

Machine noise

≤60

Voltage

220V 50HZ

Air pressure

0.5-0.7MPa
