xinkeli packaging machine

xinkeli packaging machine brand ,hot sale flow pack machine and vffs for 17years,

CONTACT US

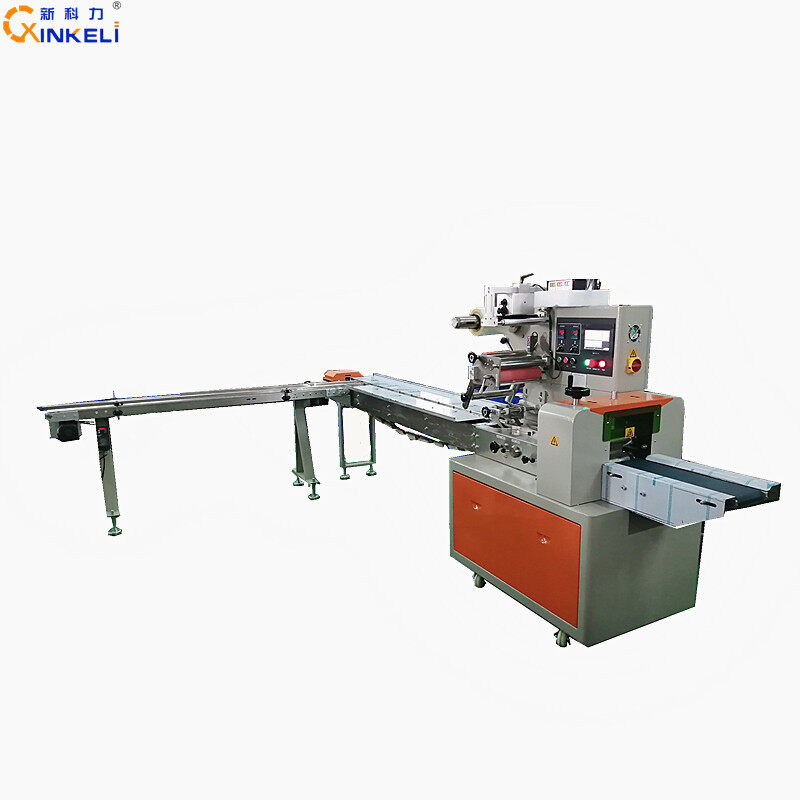

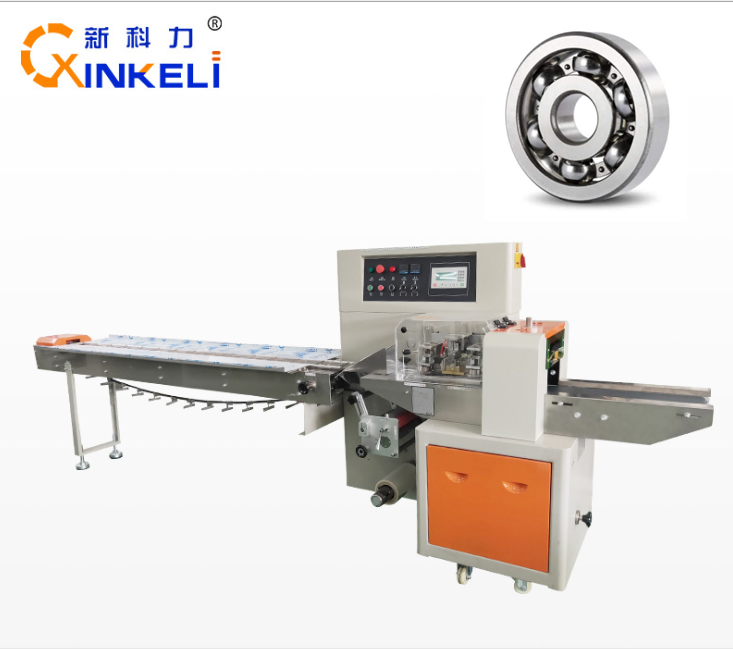

铝材包装机.jpgKL-320_饼干_副本.jpgAUTO_FEED_FLOW_WRAP.jpgpackaging_sample_common_use.jpg350x.png

Up Paper Rotary Horizontal Flow packing machine Features:
· Dual frequency conversion control, bag length can be set and
   cutting in one step ,saving time and films.
· Interface features are easy and quick setting and operating.
· Self diagnosis failure function, clear failure display.
· High sensitivity photoelectric eye color tracing, numerical input of
cutting sealing position for extra accuracy.
· Temperature independent PID control, more suitable for packing
   different materials.
· Positioned stop function, without sticking knife or wasting film.
· Simple driving system, reliable working, convenient maintenance.
· All control is realized through software, easy for function adjusting
and technical upgrade.
Application: Food: Biscuit Bread, pies, cake, chocolate bar, noodle,
candy
Vegetables and Fruits: apples, bananas, lettuce, potatoes, tomatoes,
peppers, cucumbers, etc.
Hardware: hinge, stainless steel pipe, bearings , screw, nuts and
washer, etc
Hotel Supplies: soap, disposable comb, tooth paste and brush in one
set.
Stationary: pencil, eraser, notebook, paper card, adhesive tape, etc.
Electric Products: battery, cable, earphone, user manual and
accessories in one set.
Medical: face mask, glove, gauze, capsule, disposable syringe, etc.
Daily use: plastic knife, fork, plate, sponge, scourer, wipes, several
straws in a bag, gift, cups, bottles, napkin, baby diaper, etc.





Specification:
Model Kl-250 KL-350 KL-400 KL-450 KL-600 KL-680
Film Width Max.250 Max.350mm Max.400mm Max.450mm Max.600mm Max.680mm
Bag Length 65-195 or120-280 65-190 or
120-330mm
150-400mm 150-450mm 160-500mm 180-600mm
Bag Width 30-110mm 50-160mm 50-180mm 50-180mm 100-280mm 100-320mm
Products High Max.60mm Max.60mm Max.65mm Max.75mm Max.110mm Max.110mm
Film Roll
Diameter
Max.320mm Max.320mm Max.320mm Max.320mm Max.320mm Max.320mm
Packing Speed 40-230bag/mins 40-180bag/min 30-150bag/min 30-150bag/min 20-150bag/min 20-130bag/min
Power 220v 50/ 60hz
2.6kw
220V 50/60Hz
2.6kw
220V 50/60Hz
2.8KW
220V 50/60Hz
2.8kw
220V 50/60Hz
2.8kw
220V 50/60Hz
2.8kw
Machine Size 3770*670*1450 4030*770*1420 4030*770*1420 4030*820*1420 4030*970*1500 4030*1070*1500
Machine Weight About 450kg About 500kg About 550kg About 600kg About 680kg About 720kg
