Item : Specification

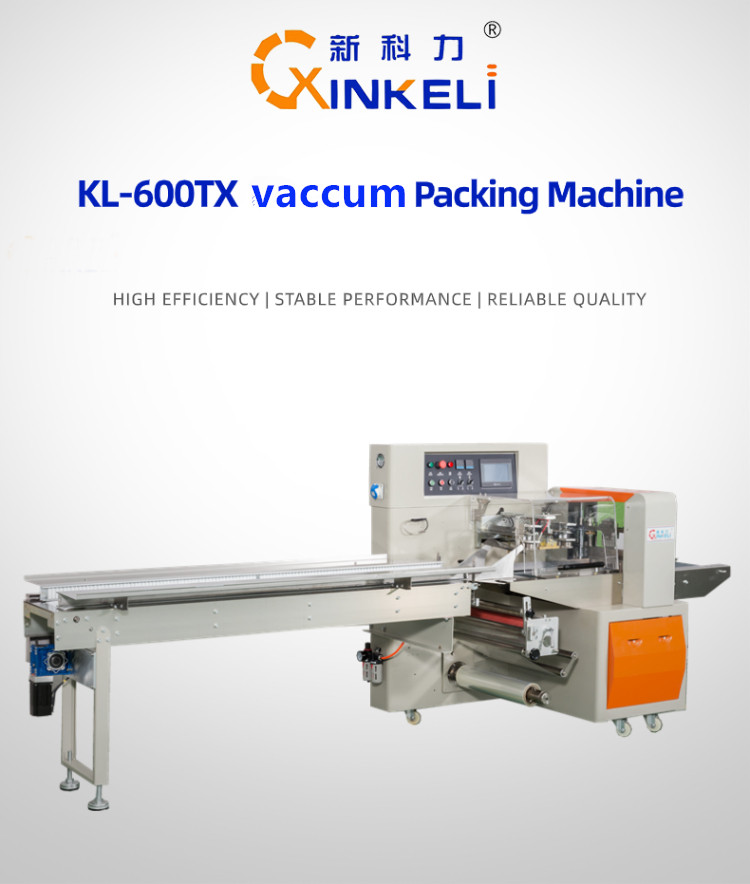

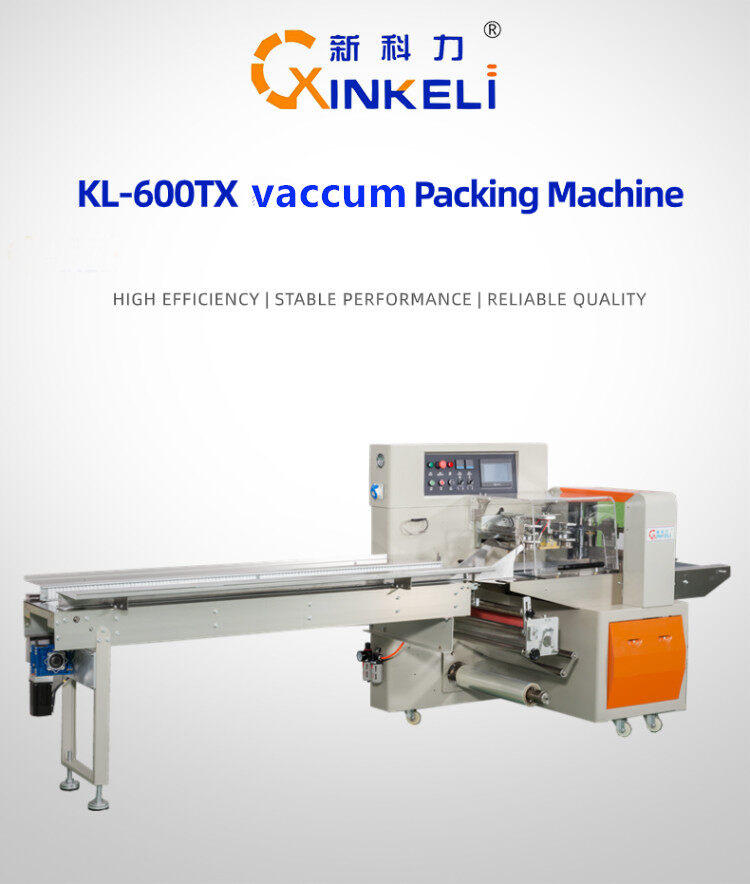

Model : 600 Horizontal Vacuum Flow Wrapper
Packaging Type : Pillow Vacuum Packaging
Max. Film Width: 600 mm
Bag Length : 150–600 mm (Adjustable)
Bag Width: 50–250 mm
Product Height： Up to 100 mm (Customizable)
Packaging Speed ： 10–40 bags/min (Depending on product size and material)
Packaging Material PA/PE, PET/PE, OPP/CPP, Laminated Vacuum Films
Sealing Type Three-side Heat Sealing
Vacuum System Continuous External Vacuum System
Control System PLC + Color Touch Screen
Driving System Full Servo Motor Control
Temperature Control Independent PID Temperature Control
Power Supply AC 220V / 380V, 50/60Hz
Installed Power 5.5–7.5 kW
Air Pressure 0.6–0.8 MPa
Machine Dimensions Approx. 4300 × 1100 × 1600 mm
Machine Weight Approx. 900–1100 kg
Standard Configuration
* Full Servo Motor Control
* PLC Intelligent Control System
* Color Touch Screen HMI
* High-Efficiency Vacuum Pump
* Automatic Film Feeding System
* Automatic Film Tracking System
* Photoelectric Registration Sensor
* Independent PID Temperature Control
* SUS304 Stainless Steel Contact Parts
* Automatic Alarm & Fault Display
* Recipe Memory Function
* No Product, No Bag Function
Features
* Extends product shelf life by removing air before sealing.
* Stable full-servo operation with high packaging accuracy.
* User-friendly PLC control with an intuitive touch screen.
* High vacuum efficiency and reliable sealing performance.
* Strong and attractive seals suitable for retail packaging.
* Easy size adjustment with minimal downtime.
* Can be integrated with automatic feeding, weighing, metal detection, labeling, and cartoning systems.
* Suitable for continuous, high-efficiency production.
