Automatic long Tube Pipe bag Flow wrapping machine

Newkeli offers various hardware packaging machines, such as the tube packing machine, pipe bagging machine, pipe packing machine, aluminum profile packaging machine, and more machines for pipes packaging plant.





CONTACT US

Newkeli offers various hardware packaging machines, such as the tube packing machine, pipe bagging machine, pipe packing machine, aluminum profile packaging machine, and more machines for pipes packaging plant.

This pipe bagging machine is great for the aluminum tube. The tube packing machine with servo motor, no product not running, saves the film and this machine no matter whether it is a long pipe or short pipe, you can pack at the same time, automatically making bags according to pipe length - high quality, durable, high technical content.

Pipe Bagging Machine

Aluminum Profile  packaging machine | Tube Packing Machine  KL-350X  ( upgraded )

A pipe bagging machine is a type of machinery used to automatically package pipes in a bag or other packaging material. The machine typically includes a conveyor system that moves the pipes through the bagging process, as well as a bagging mechanism that seals the bags once they are filled. Pipe bagging machines are commonly used in manufacturing and distribution facilities that handle pipes and other similar products. They can increase efficiency and productivity by automating the packaging process and reducing the need for manual labor.



Item

KL-350XB

KL-350XD

Film width

Max.350mm

Max.350mm

Bag length

65-190mm or 120-330mm

65-190mm or 120-330mm

Bag width

50-160mm

50-160mm

Product height

Max 40mm

Max 60mm

Packaging speed

40-230 bags/min

40-230 bags/min

Power

220v 50/60Hz 2.8kw

220v 50/60Hz 2.8kw

Dimention

(L)4020*(W)720*(H)1320mm

(L)4020*(W)720*(H)1320mm

Machine weight

550kg

550kg







Aluminum tube Pipe Bagging Machine KL-350X :



1. Double frequency conversion control , bag length can be set and cut in one step , saving time and films.

2. High sensitivity photocell tracing , input cutting & sealing position digitally , extra accuracy.

3. Adopt PLC & HMI programming software , easy operating and setting.

4. The pipe bagging machine features self failure diagnosis, clear failure display.

5. PID control temperature independently which is more suitable for packing different materials.

6. Positioned stop function, without sticking knife or wasting film.

7. All control is realized through software , easy for function adjustting , technical upgrade.

8. Recoprocating type sealing device , firmer sealing , no wasting in mould sealing cutter.

9. Gusset sealing device , more beautiful bag shape , improving products level.

10. Simple driving system, reliable working, convenient maintenance.

11. Design of mechanical structure is simple & reasonable, which makes the operation easy and reliable.

12. All control is realized through software , easy for function adjustting, technical upgrade.





Aluminum tube pipe packing machine

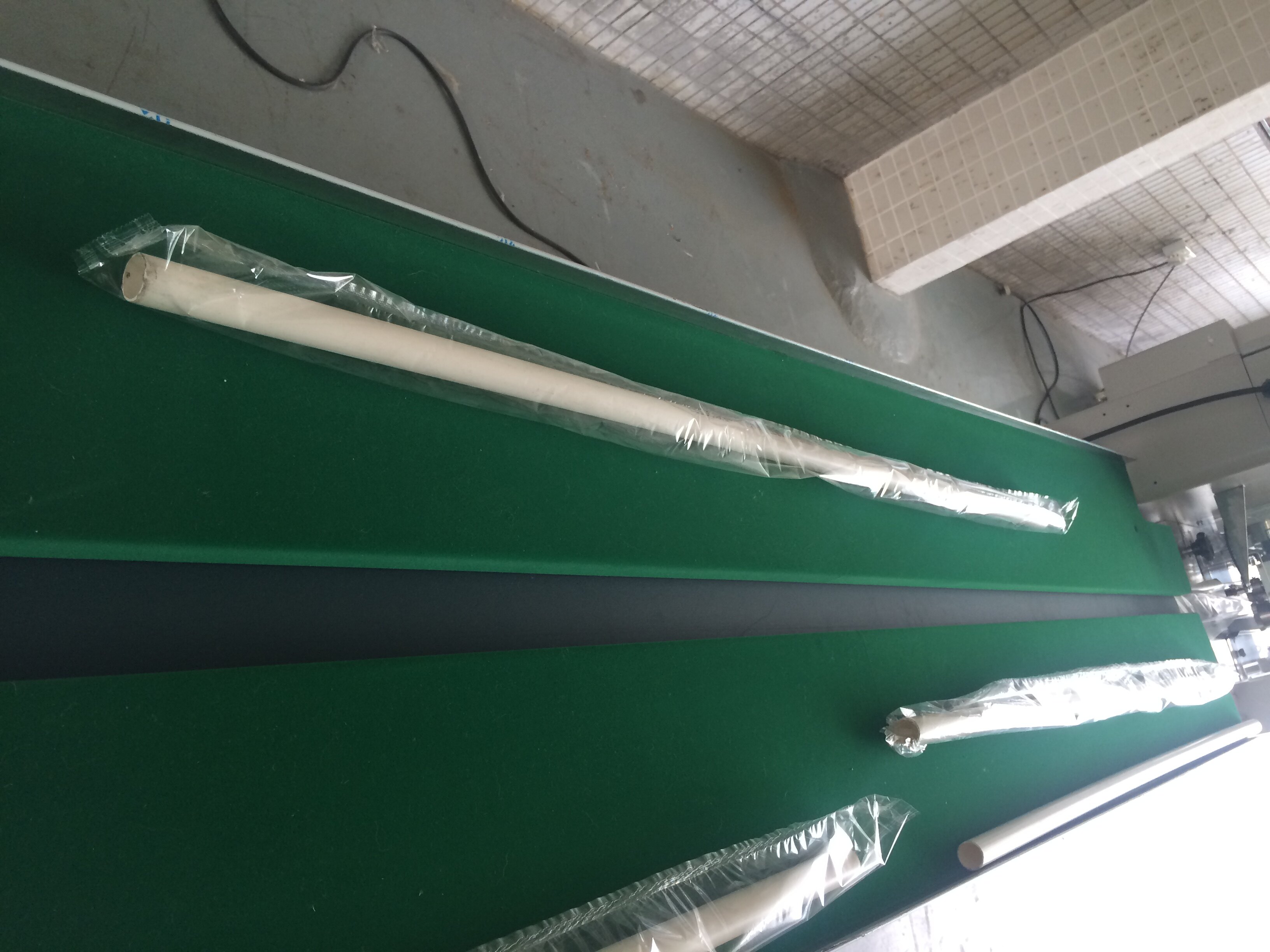

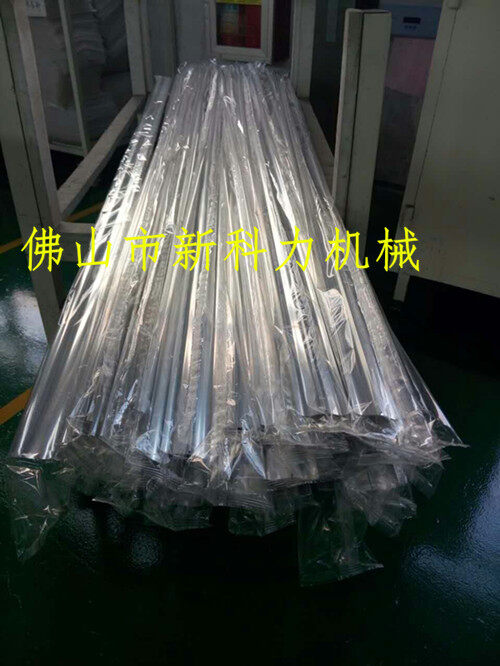

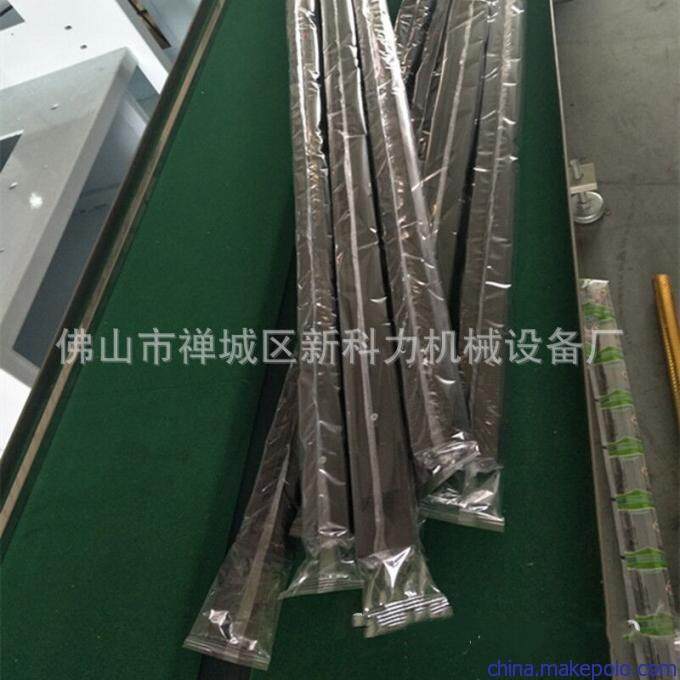

packaging sample

machines for pipes packaging plant

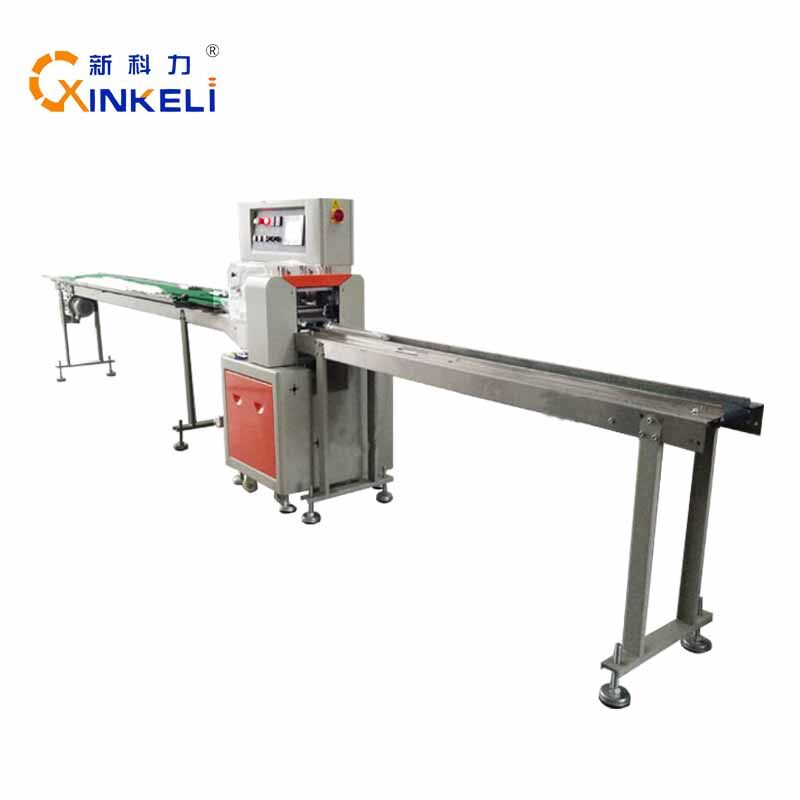

Pipe packing Machine
