Iv Infusion Set wrapping Machine,IV Infusion bag Sets flow packing machine .
Iv Infusion bag Wrapping Machine, medical product packaging machine, in infusion bag ,infusion sets flow packing machine, wrapping machine for infusion sets
Infusion Set Wrapping Machine Product Description
Our entry level horizontal flow packaging machine, newkeli flow wrapper will totally transfer the way that your products are handled and wrapped. Suitable for small and medium sized food and non-food products. flow packing machine is drived by two DC motor with inverters and controlled by PLC, the bag length and packing speed can set on the touch screen, bag width is adjustable according your product, make it a versatile, easy to use and cost effective alternative to manual packaging methods.
|
Technical Parameter for Infusion Set Wrapping Machine |
|
Model |
KL-250X |
KL-350X |
KL-450X |
KL-600X |
KL-700X |
|
Film Width |
Max.250mm |
Max.350mm |
Max.450mm |
Max.600mm |
Max.700mm |
|
Bag Length |
65-280mm |
65-330mm |
150-450mm |
160-500mm |
180-600mm |
|
Bag Width |
30-110mm |
50-160mm |
50-180mm |
100-280mm |
100-330mm |
|
Product Height |
Max.60mm |
Max.80mm |
Max.90mm |
Max.110mm |
Max.110mm |
|
Packing Speed |
40-230bag/min |
40-230bag/min |
40-150bag/min |
20-150bag/min |
20-130bag/min |
|
Power |
220V 50/60Hz 2.4K W |
220V 50/60Hz 2.8KW |
220v 50/60Hz 2.8KW |
220v 50/60Hz 2.8KW |
220V 50/60Hz 2.8KW |
|
Machine Size (L*W*H)mm |
3920*670*1320 |
4020*720*1320 |
4150*820*1450 |
4300*920*1460 |
4380*980*1480 |
|
Machine Weight |
About 500kg |
About 550kg |
About 650kg |
About 680kg |
About 720kg |
*The capability and bag size depend upon the type and nature of the products to be wrapped as well as the type and quality of the wrapping materials and the feeding system.
|
Optional Accessories |
|
Date Coder |
End seal gusset |
Automatic Punching Device |
|
In-feed carrier block |
Auto labeling device |
Deoxidizer chute device |
|
Gas flushing device |
Alcohol spraying device |
Cards Auto feeder |

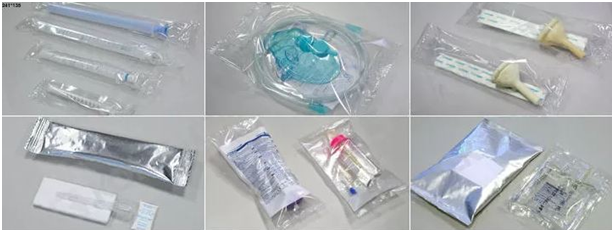

Applications
FLOWPACK horizontal packing machine have been widely used in several fields throughout the world, such as food, pharmaceuticals, cosmetics, medical supplies, industrial foods, rubber goods, sundry goods, sporting goods, etc.
