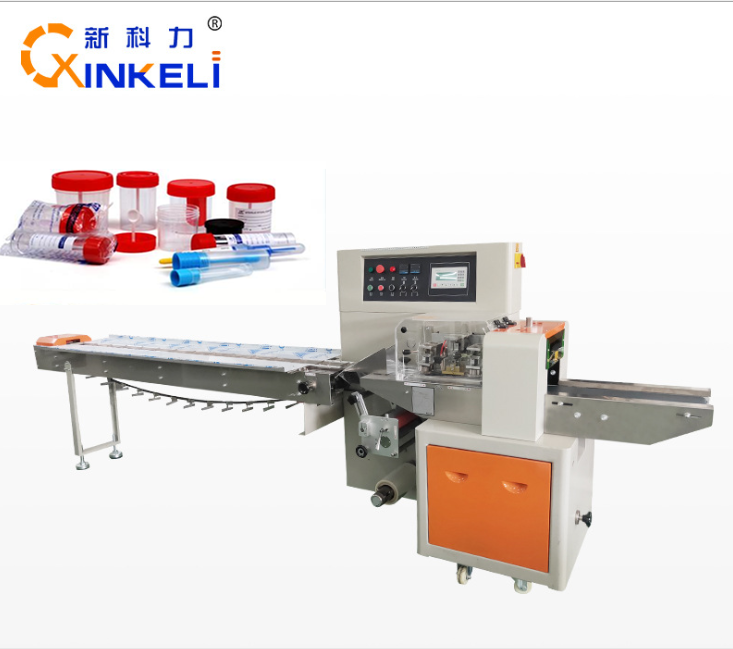

blood bottle  Packing Machine

Model KL-250XB KL-250XD

Film width Max.250mm

Bag length 65～190mm or 120～330mm

Bag width 30~110mm

Product height Max.40mm Max.60mm

Film roll diameter Max.320mm

Packing speed 40 ~ 230 bags / min

Power specifications 220V, 50/60HZ, 2.4KVA

Machine size (L) 3920 × (W) 670 × (H) 1320

Machine quality 550Kg main performance and structural features.

1. Double frequency converter control, the bag length can be set and cut, no need to adjust the air, one step in place, saving time and film.

2. Man-machine interface, parameter setting is convenient and quick.

3. Fault self-diagnosis function, the fault display is clear at a glance.

4. High-sensitivity photoelectric eye color tracking, digital input sealing and cutting position, making the sealing and cutting position more accurate.

5. Temperature independent PID control, better suited to a variety of packaging materials.

6. Positioning stop function, no sticking knife, no waste film.

7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.

8. All control is realized by software, which is convenient for function adjustment and technology upgrade, and never lags behind.

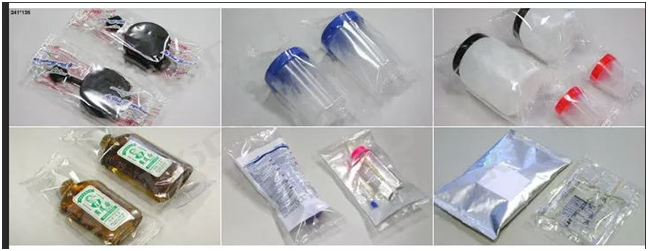

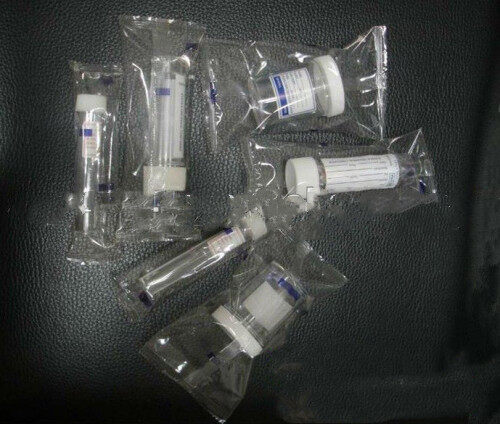

Packing samples:
