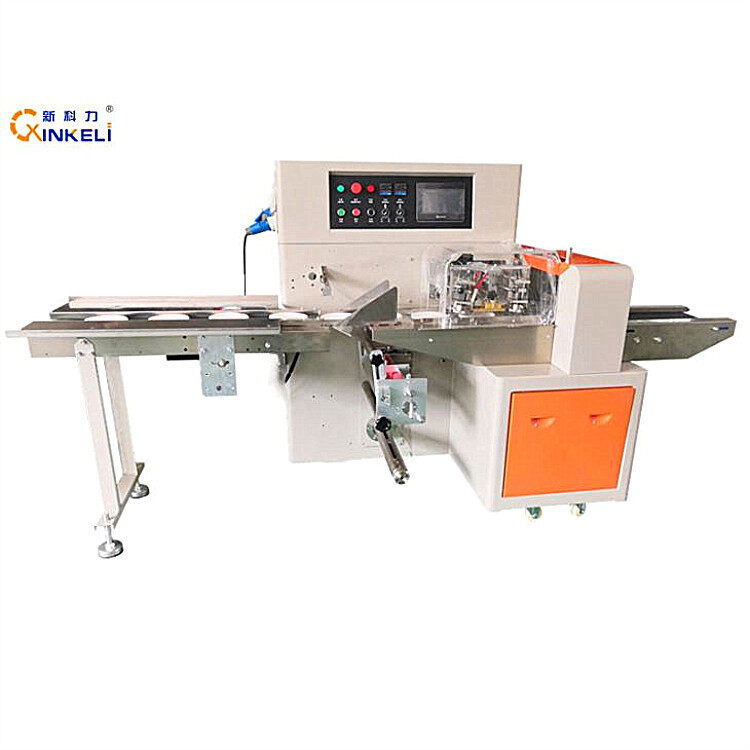

IV Fluid Packing Machine,Medical iv infusion bag flow wrapping machine Features
KL-450X :
1. Double frequency conversion control , bag length can be set and cut in one step , saving time and films.
2. Adopt PLC & HMI programming software , easy operating and setting .
3. Self failure diagnosis , clear failure display .
4. High sensitivity photocell tracing , input cutting & sealing position digitally , extra accuracy .
5. which contatc material is food grade belt and ss304 material
medical iv infusion bag flow wrapping machine -- KL-450X :
1.CE certification
2.PLC & HMI program
3.double frequency conversion
4.photocell
speicification of medical iv infusion bag flow wrapping machine
|
Model No
|
450X
|
600X
|
|
Bag Width (Mm)
|
50-180
|
90-220
|
|
Film Width(Mm)
|
Max.450
|
Max.600
|
|
Power
|
220V 50/60Hz 2.6Kw
|
220V 50/60Hz 2.8Kw
|
|
Machine Size (Mm)
|
L4020*W850*H1450
|
L4020*W1050*H1450
|
|
Machine Weight(Kg)
|
About 850
|
About 900
|
|
Produce Height(Mm)
|
Max.80
|
|
Machine Speed
|
30-100 Bag/Min
|
|
Bag Length (Mm)
|
180-450
|
|
Packing Film
|
Any Heat Sealable Laminated Roll
|
|
Film Roll Diameter
|
Max.320 mm
|
|
Machine Control Through
|
PANASONIC PLC
|
|
Machine Motion
|
Continuous
|
|
Product Application
|
Packaging Soft,Strip And Unorganized Objects Like Towels,Tissues,Noodles,Sausages,Soft Candies
|
|
Packing Film Pulling
|
Through Electromagnetic Clutch And Brake
|
|
Contact Parts
|
Food Grade Stainless Ss 304
|
|
Sealing Type
|
Pillow Bag
|
|
Main Motor
|
From Taiwan
|
|
Temperature Controller
|
Pid Based
|
|
Machine Features
|
Dual Frquency Conversion Control,High Sensitivity Photoelectric Eye Color Tracing,Temperature Pid Control
|
|
Language
|
English+Arabic+Any
|
|
Additional
|
Toolbox+Operation Instruction
|
|
Optional Features
|
Punching Cutting Device, Pneumatic Coding Device, Nitrogen Flushing Device,Angle Folding Device
|
