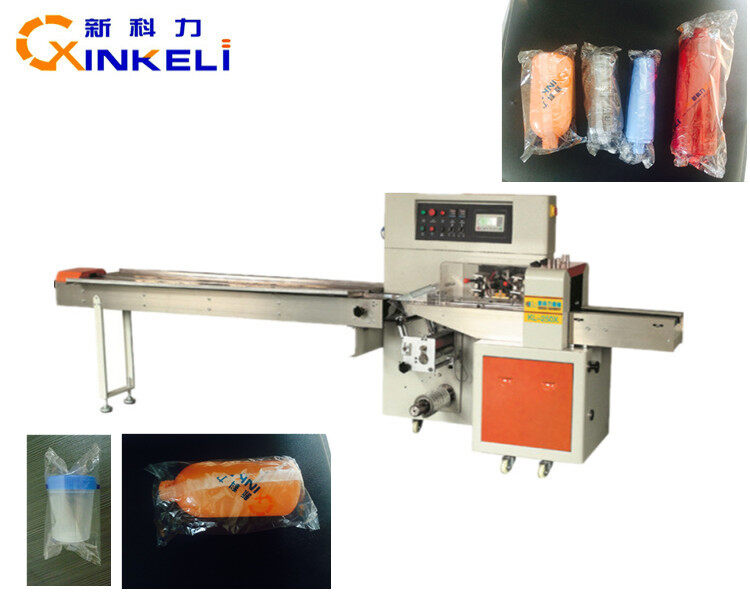

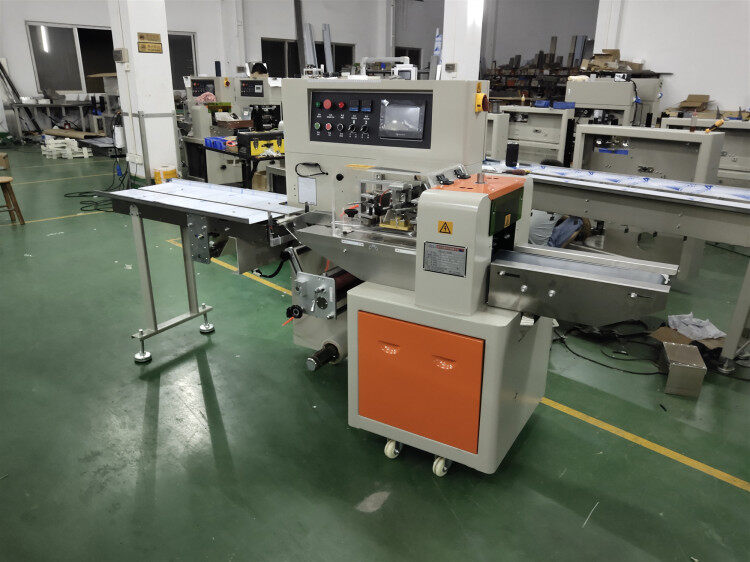

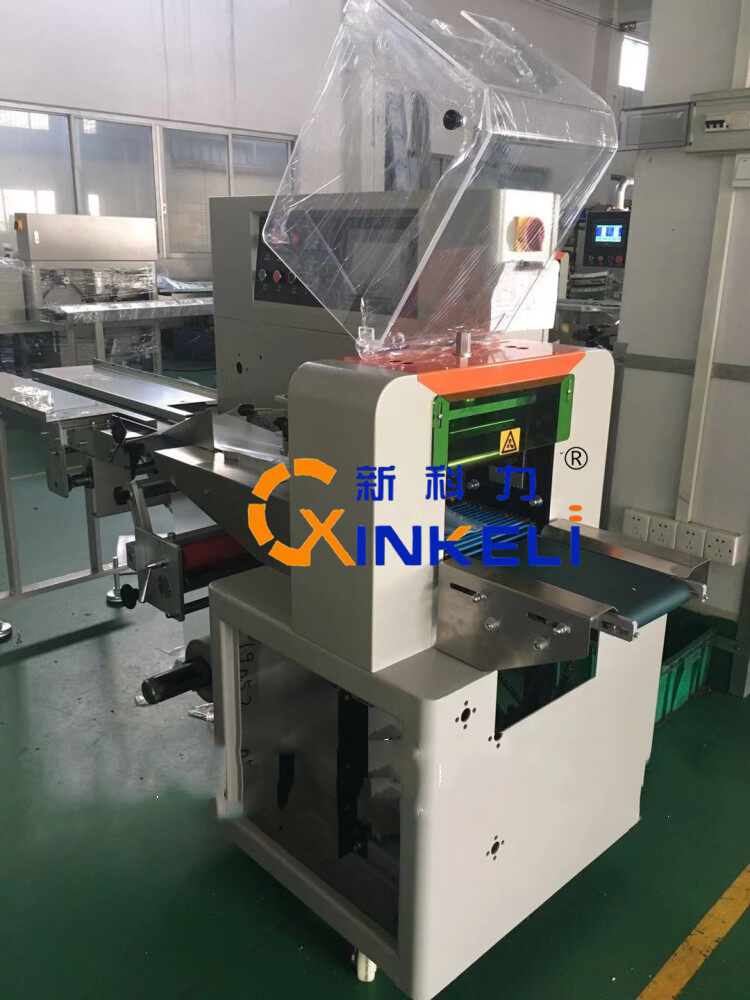

Three-servo bottle bagging machine cosmetic bottle automatic bagging machine plastic bottle packaging machine bottle packaging machine plastic bottle automatic bagging machine plastic box packaging machine plastic lid bagging packaging machine!

Plastic bottle bagging and packaging machine, the machine can pack more than 100 machines in one minute. There are many types of packaging, and the bag can be made with one side sealed and the other unsealed. This makes it easy to take the bottle out for the next engineering department! The bottle will not fall out easily. The packaging material used is a PO film specially packaged for bottles. Very soft. Will not scratch the bottle. thin. The cost will be very low!

(1) Main performance and structural characteristics
 1. Three-servo control, the bag length is set and cut immediately, no need to adjust the idling, one step is in place, saving time and film. There is no empty bag.
 2. Man-machine interface, convenient and quick parameter setting.
 3. The fault self-diagnosis function, the fault display is clear at a glance.
 4. High-sensitivity photoelectric eye color mark tracking, digital input of the sealing and cutting position, making the sealing and cutting position more accurate.
 5. Independent PID control of temperature, better suitable for various packaging materials.
 6. Positioned stop function, no sticking to the knife, no waste of film.
 7. The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
 8. All control is realized by software, which is convenient for function adjustment and technical upgrade, which is the most backward.

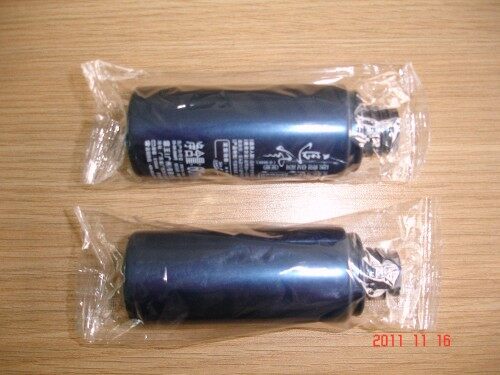

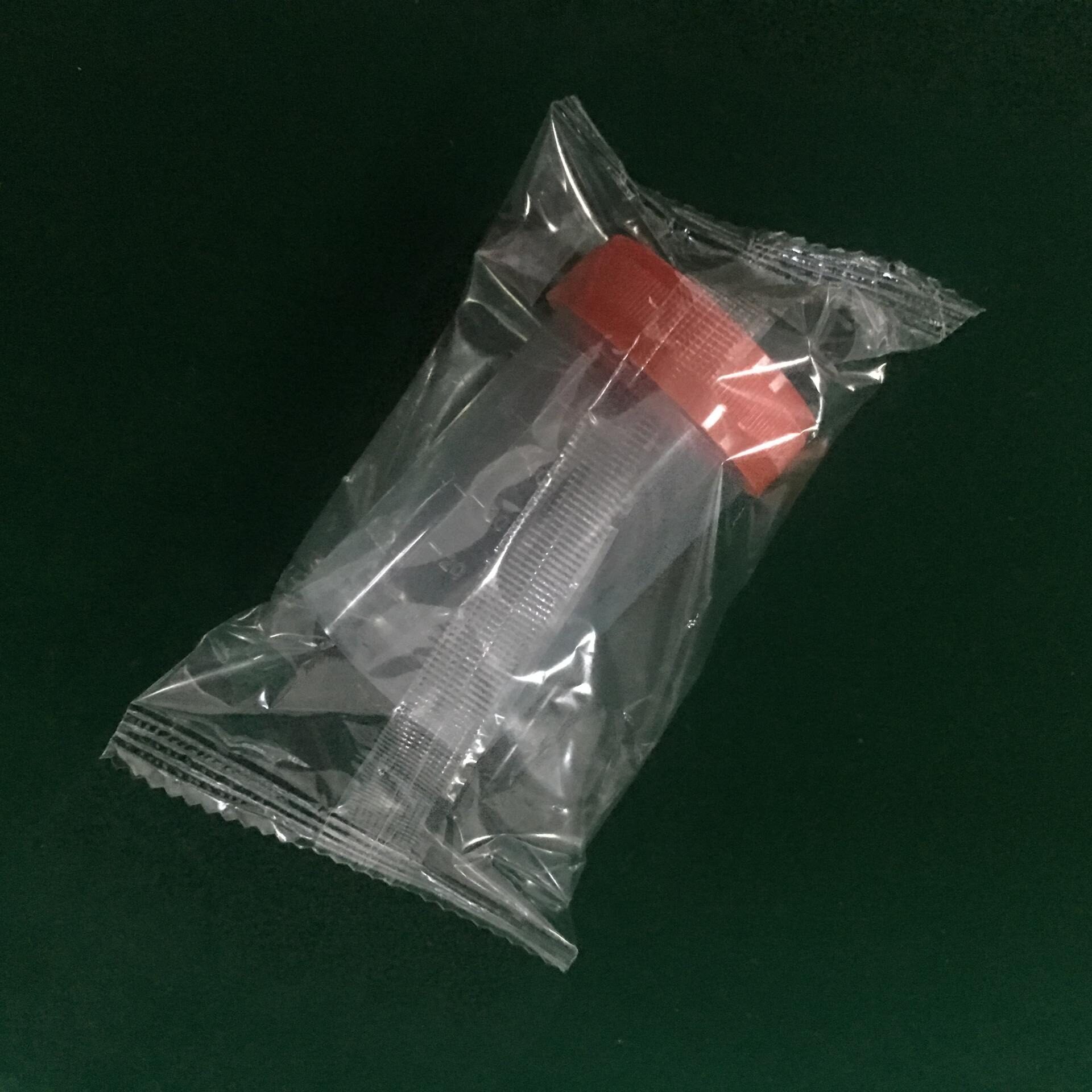

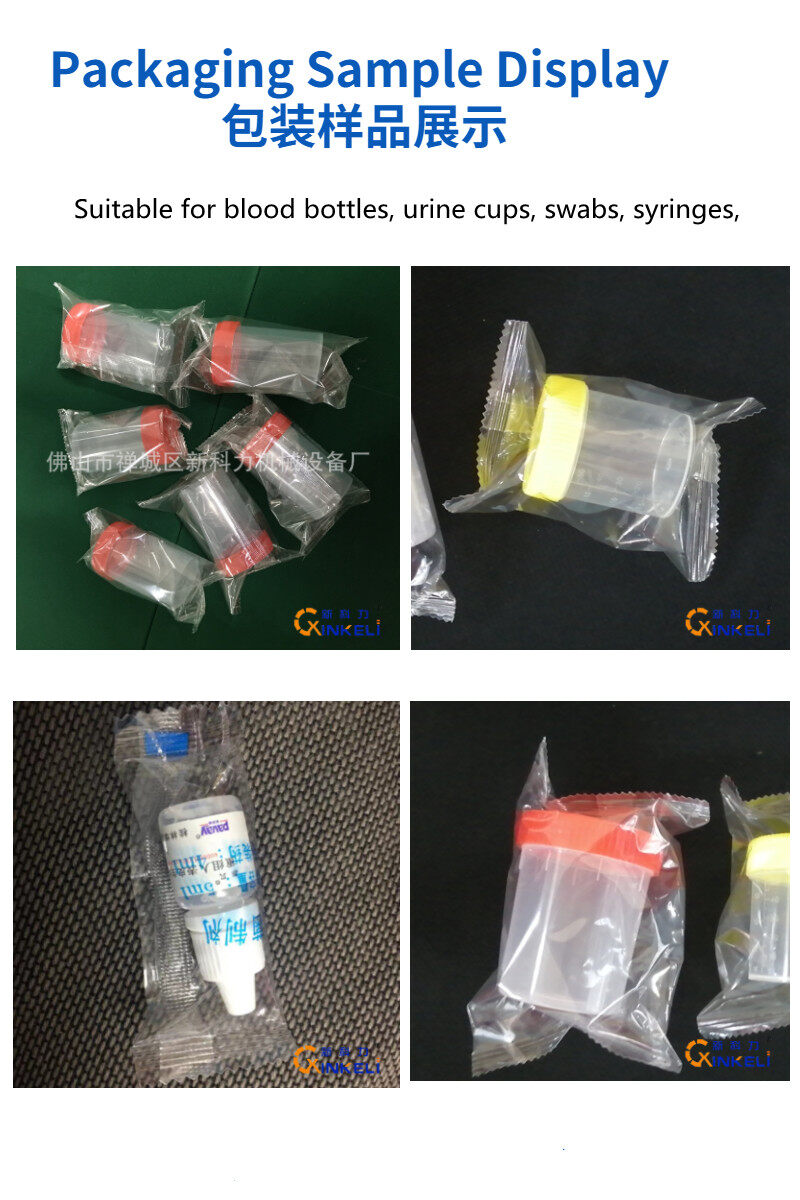

 (2) Scope of application: It is suitable for packaging of shampoo bottles, children's water bottles, cream bottles, perfume bottles, chemical bottles, plastic cups, insulated bottle instructions, plastic bottles, soft pumping paper, water pipes, etc.


 (3) Technical specifications

model:KL-350X
Film width:Max.350mm
Bag length:120~600mm
Bag making width:50～160mm
Product height:Max.90mm
Film roll diameter:Max.320mm
Packaging speed:40～230 packs/min
Power Specifications:220V, 50/60HZ, 2.8KVA
Machine size: (L) about 3520×(W)720×(H)1320
Machine quality:500Kg
