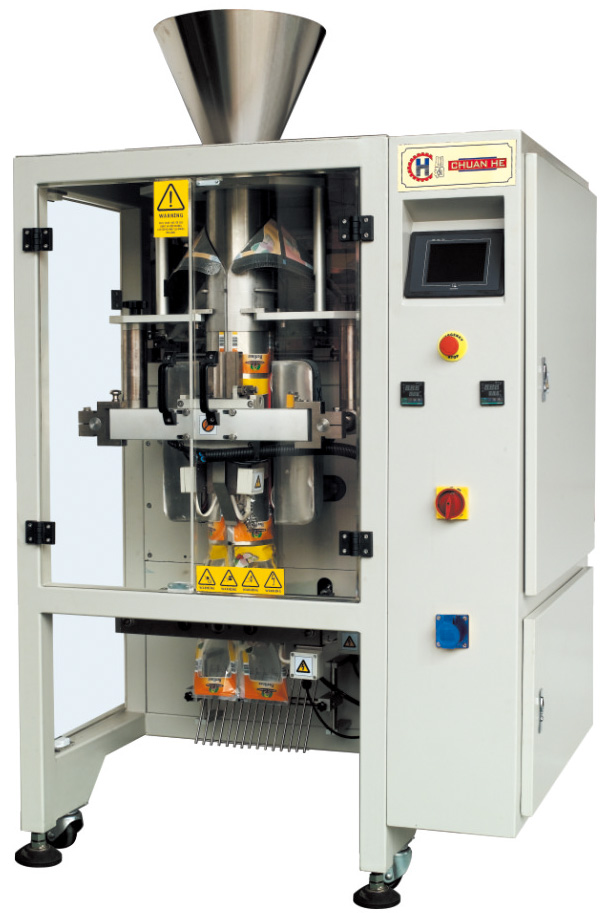

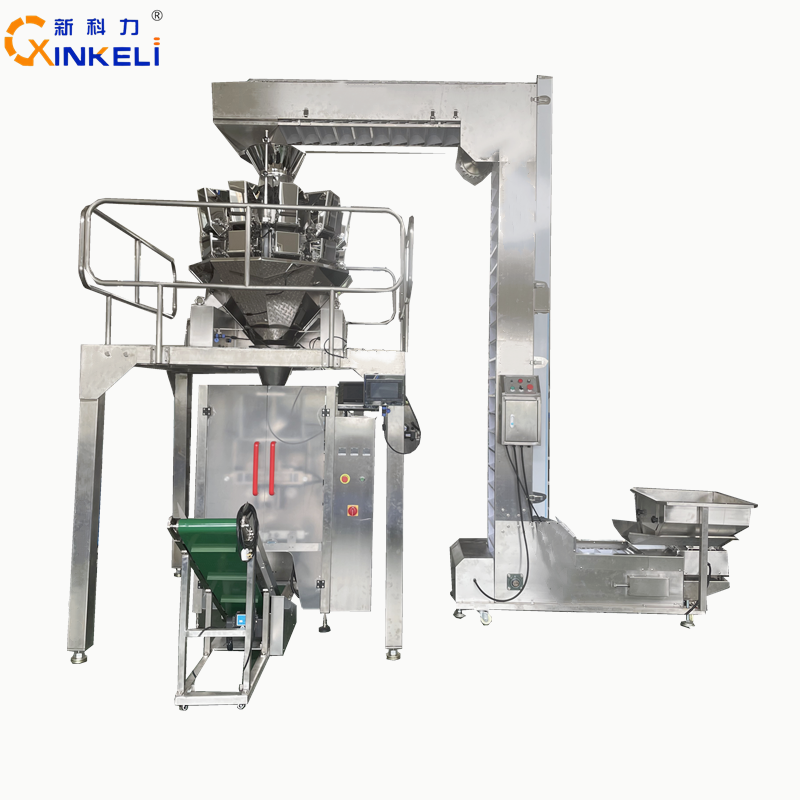

Automatic Jelly bean Packing Machine Technical characteristics:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .



1)More than 90% spare part are made of stainless steel. It can be used in the humid environments stably and keep long time
running.2)Servo or cylinder can be chosen for horizontal sealing.
3)Safety device, when the working pressure is not normal or the heating pipe is faulty, an alarm will be given.

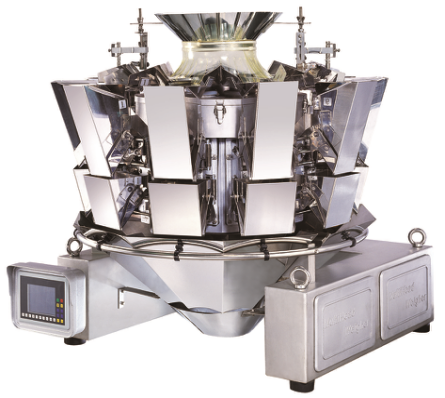

1) Multiple Combination Function, Suitable for Large Weight Weighing.
2) Unqualified Weight Removal Function.
3) On-line display during operation and on-line change of all amplitudes and feeding time.
4) Provide IP65 Waterproof Class.
5) On-line display of product weight in each weighing bucket during operation



Material: 304 stainless steel or carbon steel
Function: Delivery of packaged products to designated locations.



Material: 304 stainless steel or carbon steel

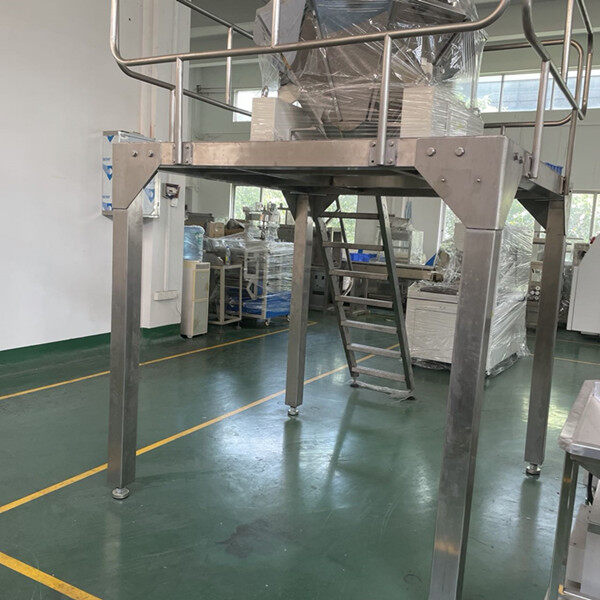

Function: Place the scale on the workbench.
