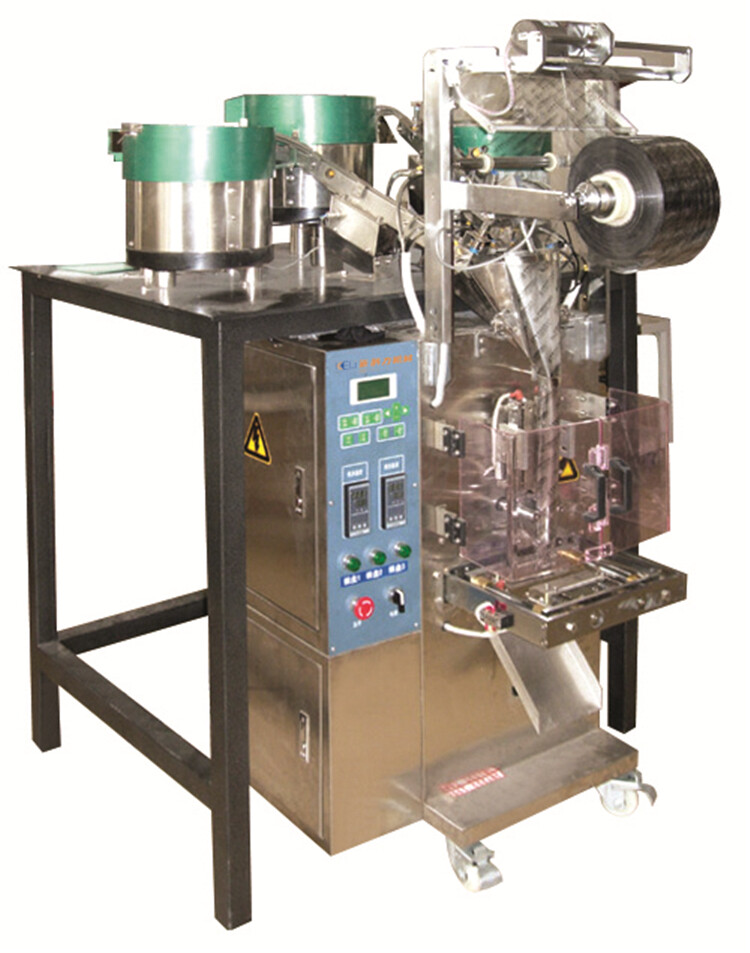

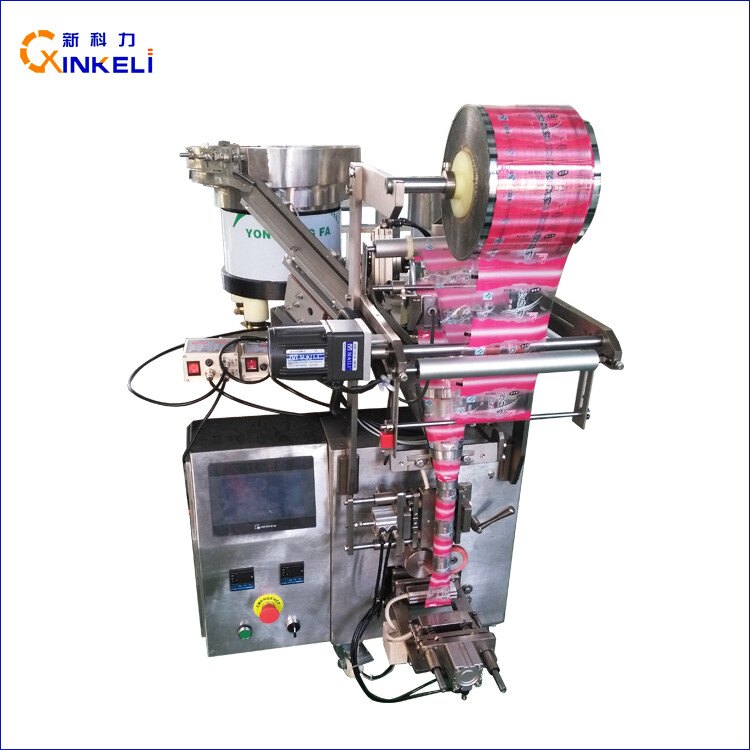

Screw Packing Machine,Fastener Packing Machine,Bolt Nail packingm machine,automatic counting filling and packing, Equipped with multiple vibrating discs to pack different types of products
+86 13923117139
+8615889953701
Screw Packing Machine,Fastener Packing Machine,Bolt Nail packingm machine,automatic counting filling and packing, Equipped with multiple vibrating discs to pack different types of products
1.The whole body 304 stainless steel high-precision structure, rust and durable, easy operation and maintenance.
2.PLC, touch screen, stepper motor control, bag length set convenient and accurate.
3.Frequency control, bag more convenient and smooth, simple and quick, save time and film.
4.High sensitivity photoelectric eye color mark tracking, digital input sealing and cutting position, so that the sealing and cutting position more accurate.
5.Temperature independent PID control, better adapt to a variety of packaging materials.
6.From filling, bagging, printing date, inflatable (exhaust) one-time completion.
7.Drive system is simple, more reliable, more convenient maintenance.
8.All controls are implemented by software to facilitate functional adjustment and technology upgrades, never lagging behind.
Main Machine Specification
|
|||
Model
|
kls-320
|
||
Film width
|
max 320mm
|
||
Bag length
|
max 220mm
|
||
Bag width
|
50-150mm
|
||
Packaging Rate
|
5-60bags/min
|
||
Measurement Range
|
50-500ml
|
||
Film Thickness
|
0.04-0.08mm
|
||
Power
|
220V 50/60Hz 2KW
|
||
Machine Size
|
970*680*1950
|
||
Machine Quality
|
About 300KG
|
||
Optional device
|
Date coder, Hole punching device (Pinhole,Round hole, The butterfly hole), Linking bag control device, Airfilling device, Air exhaust device. Tear notch device, Nitrogen inflation device, Gusset bag
|
