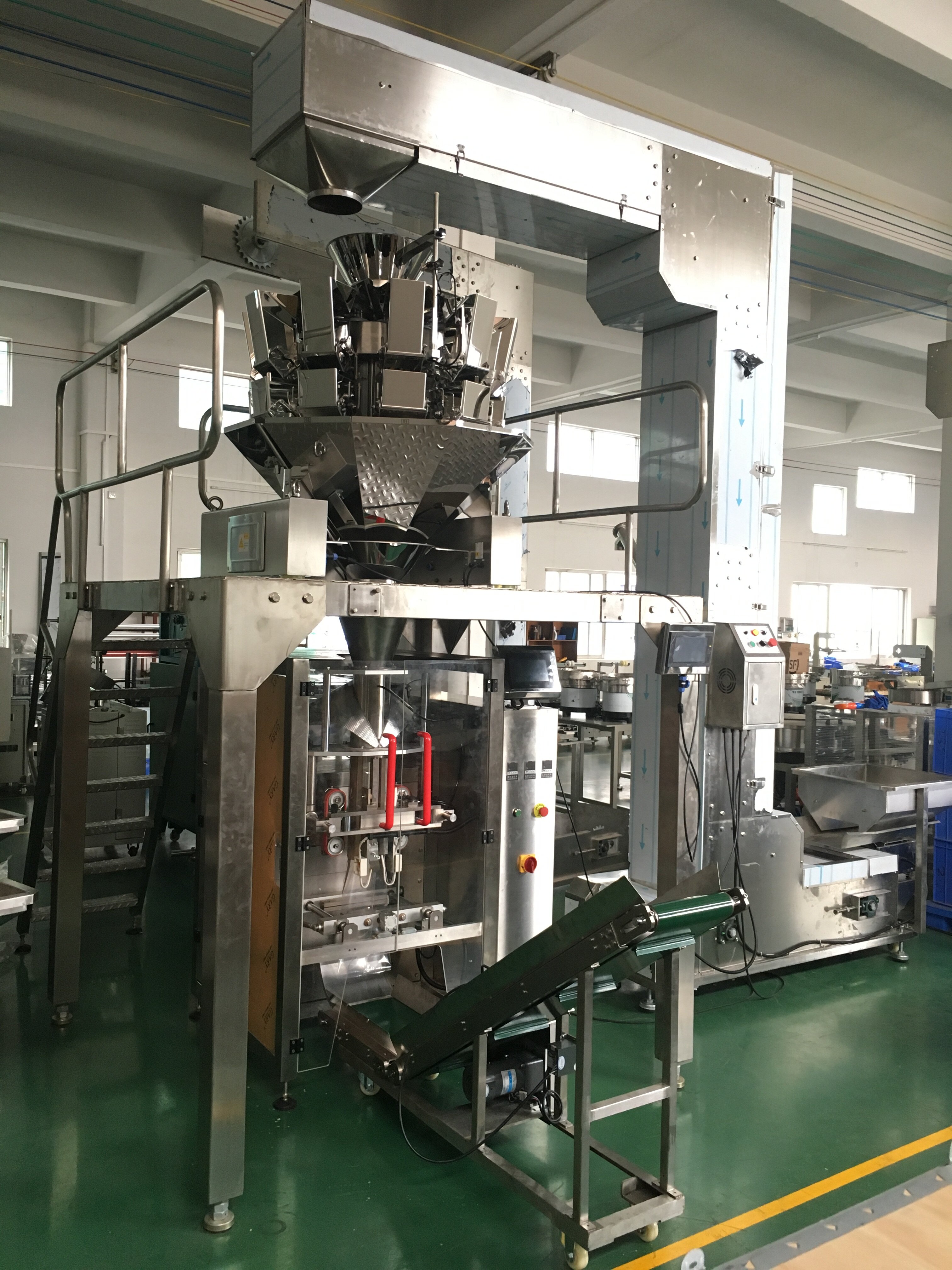

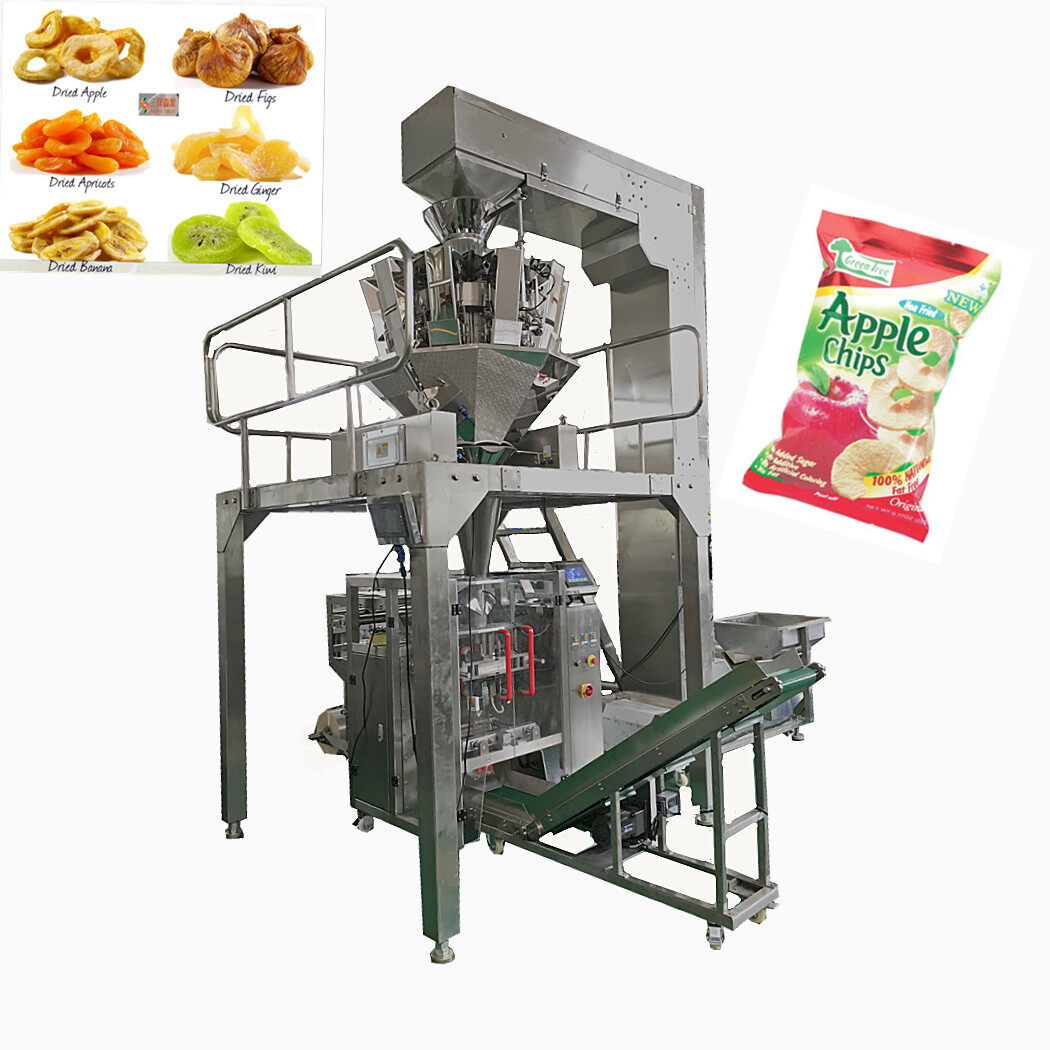

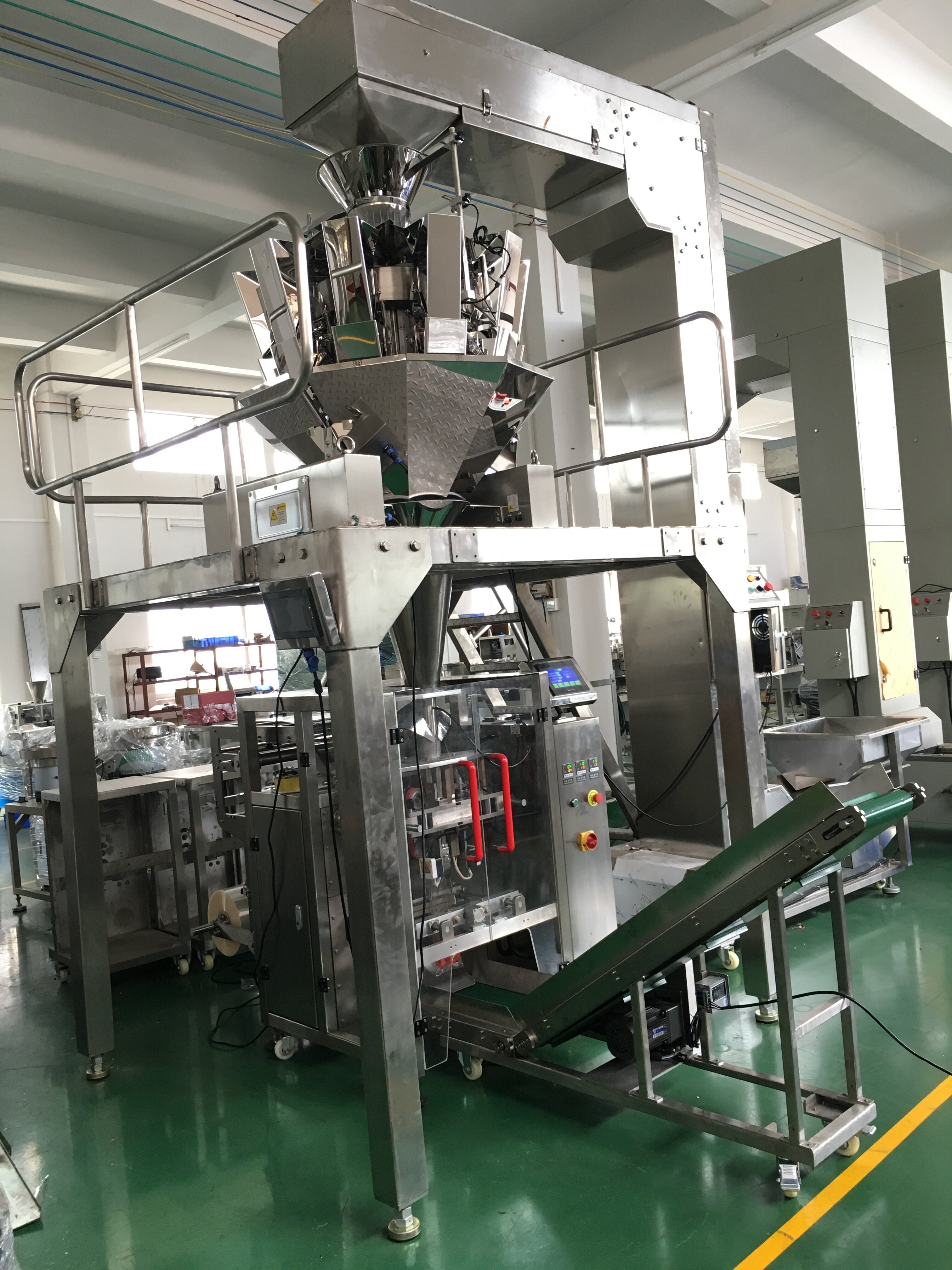

nitrogen packaging machine for snacks chips

Suitable for many kinds of measuring equipments, and package different kinds of products; such as puffy food, shrimp roll, peanut, popcorn, cornmeal, seed and sugar etc. which shape is roll, slice and granule.




CONTACT US


Nitrogen packaging machine for snacks chips  Features

·         Use famous brand electric and pneumatic components, stable and long life circle.·

          Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

·         Use superior mechanical components, reduce the wear out loss.

·         Easy to install film, auto correcting the excursion of the film.

·         Apply advanced operating system, easy to use and reprogrammable. To be used on High quality machine,  it makes your packing work easily and efficiently.



Specification:

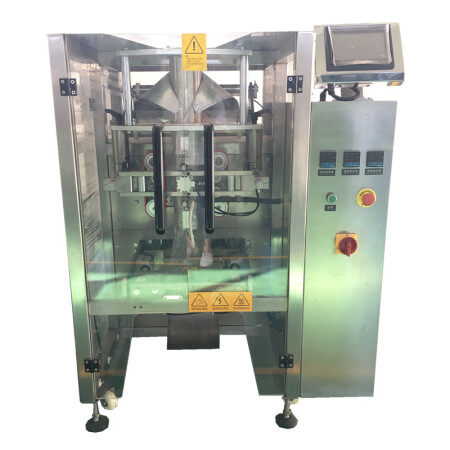

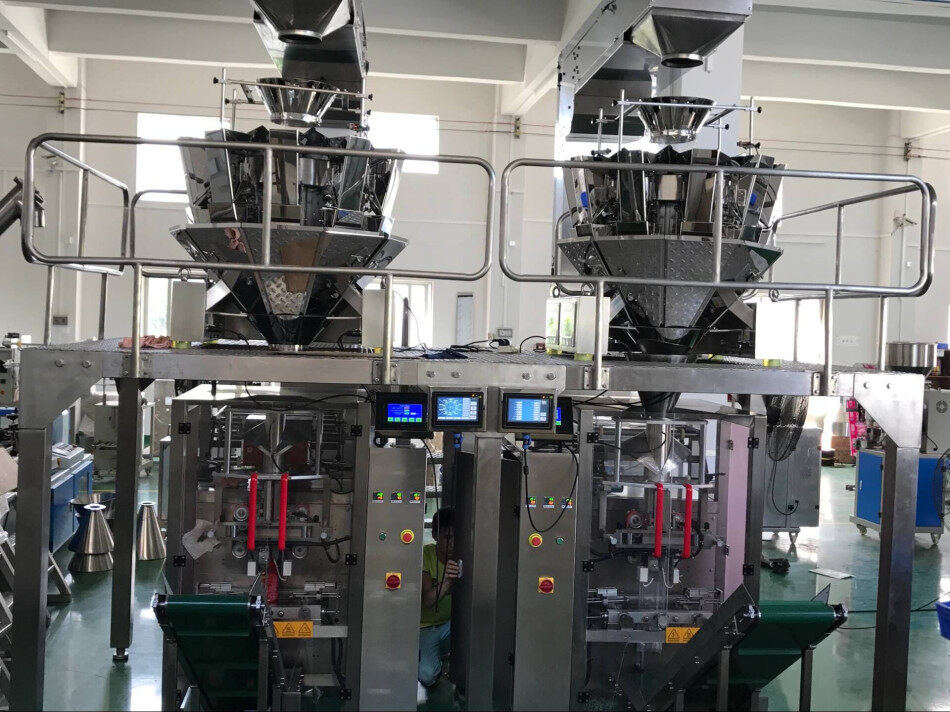

kl-520 Vertical packing machine







Bag length

50-300mm(L)

Bag width

50-300 mm (w)

Max rolling film

420 mm

Material

304

Packing speed

10-60bags/min

Air consumption

0.65Mpa

Gas consumption

0.3m3/min

Voltage

220V/50Hz

Power

2.2KW

Dimension

1080mm(L)*1300mm(W)*1400mm(H)

Machine weight

600KG

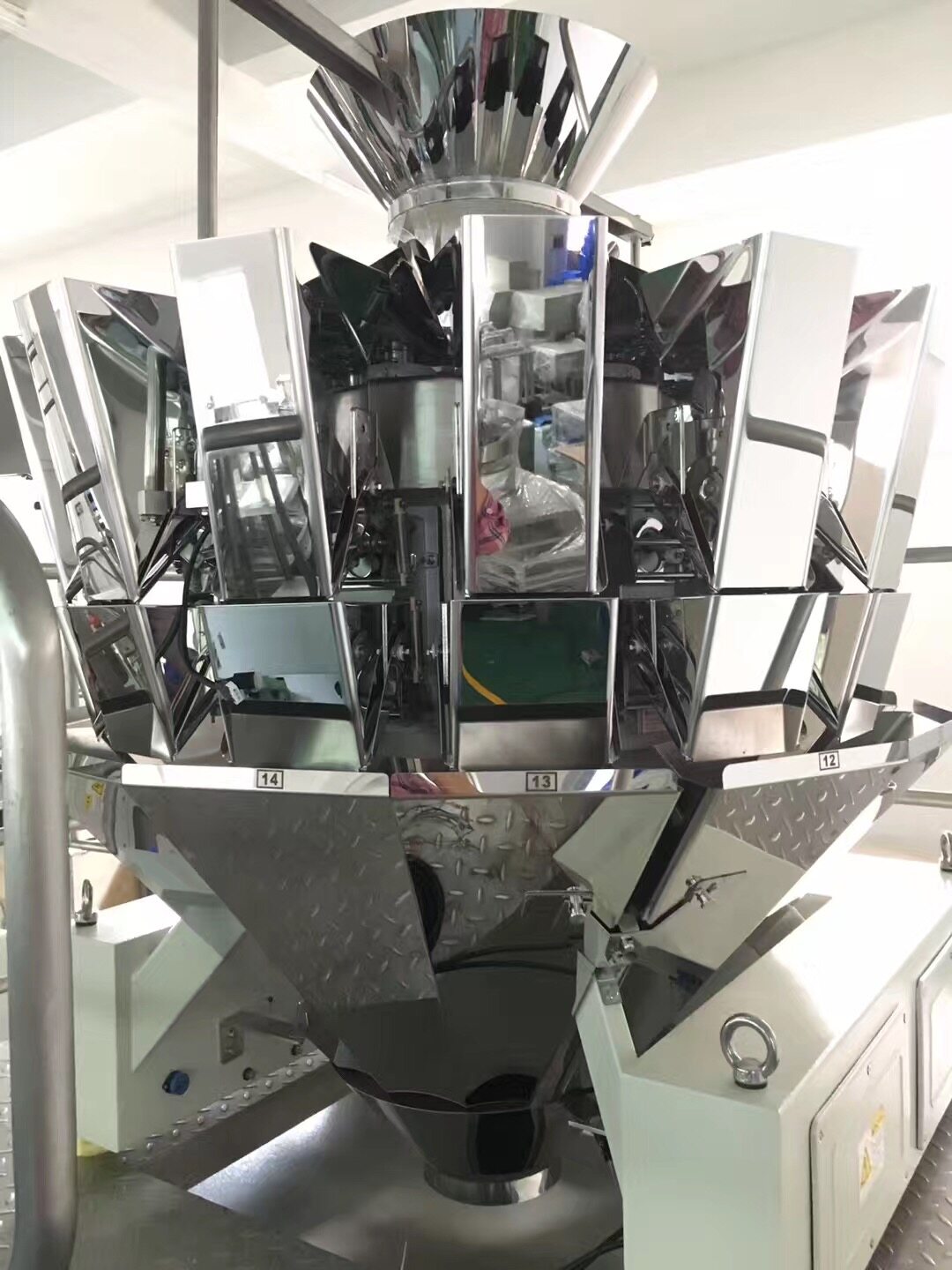

10 heads scale(weigher)



Max. Cap.(g)

10-1000g

Weighing Accuracy(g)

±0.5-2g

Max.  Weighing Speed

65PPM

Hopper Volume

1600ml

Control Panel

7 "LCD Touch Screen

Options

Dimple Plate/Timing Hopper/Printer/Rotary Top Cone

Driving System

Step Motor

Power Requirements

220V / 1000W / 50/60HZ / 10A

Packing Dimension(mm)

1620(L)x1100(W)x1100(H)

Gross WGT

420KG

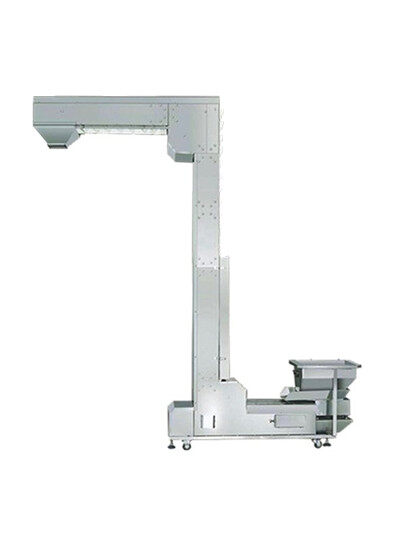

Z-shape material elevator



Model

520

Convey speed

3750mm/min

Power

750W

Convey Measure

4T/H(Rice)

Overall size

3000(L)×650(W)×3750(H)mm



Platform for scale(weigher)



Model

 Platform

Maximum Loading Weight

2T-3T

Equipment Size

2000mm*2000mm*2000mm

Net Weight

350kg

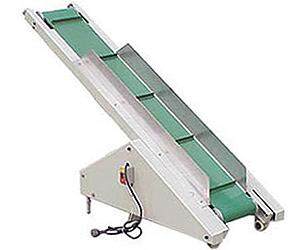

Finish product conveyor



Model

KL-130

Convey speed

30M/min

Belt

Food grade polypropylene(PP)

Voltage

Single-phase AC220V,50HZ

Power

40W

Packing size

1600mm(L)*520mm(W)*1000mm(H)

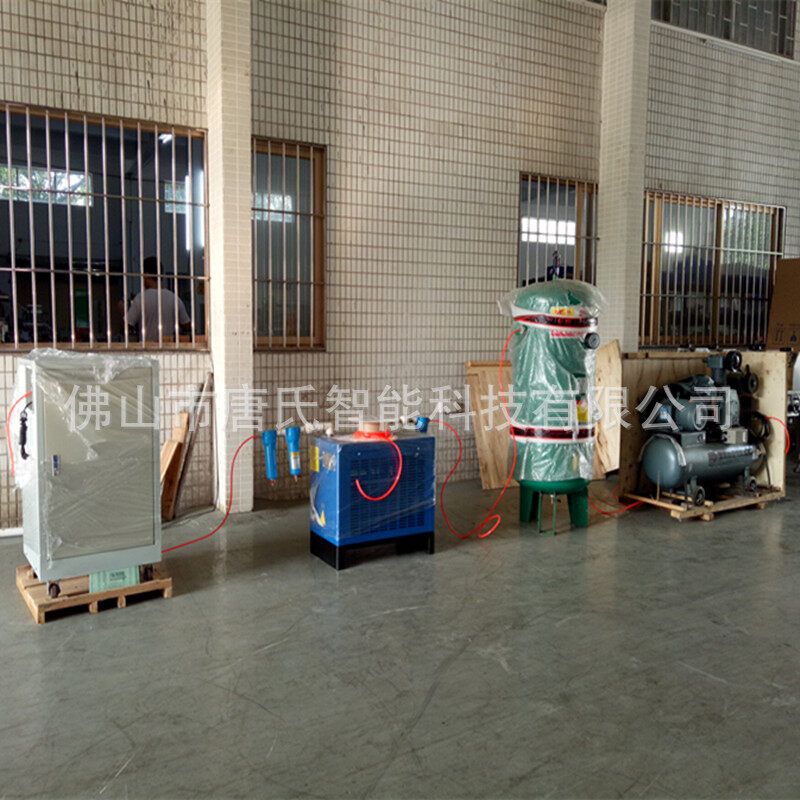

 one set for the nitrogen filling machine:
